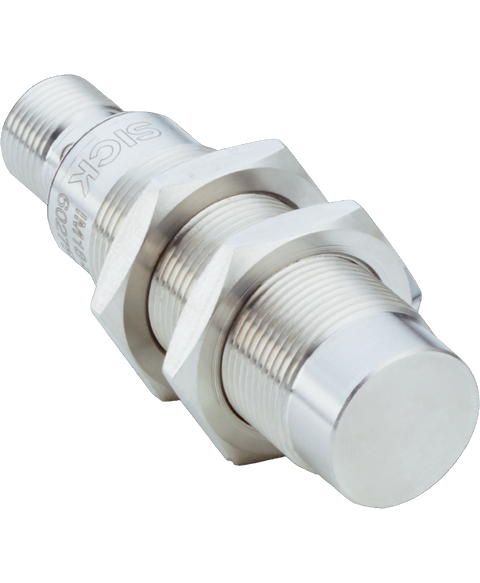

SICK IM18-20NPS-NC1
Inductive proximity sensor, m18 x 1 thread size, 18mm diameter, 4-pin, non-flush, 10-30VDC, 200Hz switching frequency, pnp output, N,O switching function, 20mm sensing range, (6027580)
This SICK IM18-20NPS-NC1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805603209.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing | Metric |
| Thread size | M18 x 1 |
| Diameter | Ø 18 mm |
| Pressure resistance | ≤ 60 bar |
| Sensing range S n | 20 mm |
| Safe sensing range S a | 16.2 mm |
| Installation type | Non-flush |
| Switching frequency | 200 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68, IP69K |
| Special features | Sensing face made of stainless steel V4A, Resistant to cleaning agents, triple sensing range, Visual adjustment indicator, IO-Link |
| Special applications | Hygienic and washdown zones, Difficult application conditions |
| Items supplied | Mounting nut, V4A stainless steel (2x) Washer, V4A stainless steel, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 20 % |
| Voltage drop | ≤ 2 V |
| Time delay before availability | ≤ 40 ms |
| Hysteresis | 1 % ... 15 % |
| Reproducibility | ≤ 5 % |
| Temperature drift (of S r ) | ≤ 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current I a | ≤ 200 mA |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +85 °C |
| Housing material | Stainless steel V4A, DIN 1.4404 / AISI 316L |
| Sensing face material | Stainless steel V4A, DIN 1.4404 / AISI 316L |
| Housing length | 63.5 mm |
| Thread length | 35 mm |
| Tightening torque, max. | ≤ 50 Nm |
| Protection class | III |
| UL File No. | E191603 |
| MTTF D | 10 years |
| DC avg | 0% |
| T M (mission time) | 20 years |
| Communication interface | IO-Link V1.0 |
| Communication Interface detail | COM2 (38,4 kBaud) |
| Process data length | 1 Byte |
| Process data structure | Bit 0 = Sr reached |
| Process data structure A | Bit 1 = Sa reached |
| Note | The values are reference values which may vary |
| St37 steel (Fe) | Approx. 1 |
| Stainless steel (V4A, 316L) | Approx. 0.4 |
| Aluminum (Al) | Approx. 1 |
| Copper (Cu) | Approx. 0.85 |
| Brass (Br) | Approx. 1.3 |
| Remark | Associated graphic see "Installation" |
| A | 41 mm |
| B | 182 mm |
| C | 18 mm |
| D | 60 mm |
| E | Aluminium: 20 mm, Steel: 34 mm, Brass: 22 mm, Stainless steel: 36 mm |
| F | 200 mm |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECLASS 5.0 | 27270101 |
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
