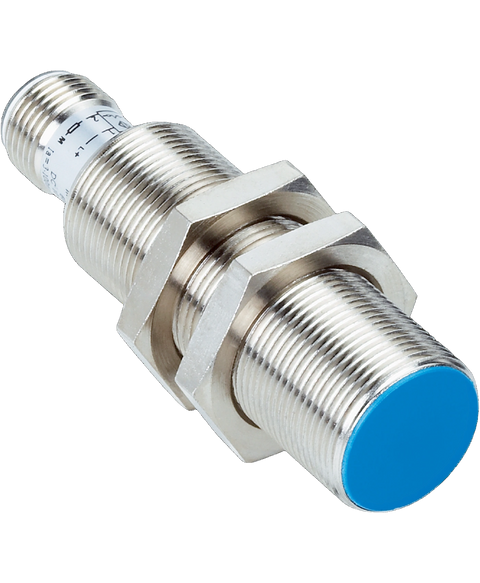

SICK IM18-08NUS-ZU0
Inductive proximity sensor, 8mm sensing range, non-flush, normally open, cable, IP67, m18 x 1 thread size, 7902124
This SICK IM18-08NUS-ZU0 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805596345.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing | Standard design |
| Thread size | M18 x 1 |
| Diameter | Ø 18 mm |
| Sensing range S n | 8 mm |
| Safe sensing range S a | 6.48 mm |
| Installation type | Non-flush |
| Switching frequency | 25 Hz 50 Hz |
| Connection type | Cable, 2-wire, 2 m |
| Output function | NO |
| Electrical wiring | AC/DC 2-wire |
| Enclosure rating | IP67 |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 20 V AC/DC ... 250 V AC/DC |
| Voltage drop | ≤ 6.5 V AC, ≤ 6 V DC |
| Time delay before availability | ≤ 8 ms |
| Hysteresis | 1 % ... 15 % |
| Reproducibility | ≤ 10 % |
| Temperature drift (of S r ) | ± 10 % |
| EMC | According to EN 60947-5-2 As per EN 55011, class B |
| Continuous current I a | ≤ 350 mA ≤ 250 mA ≤ 100 mA |
| Off-state current | ≤ 2.5 mA (AC 250 V) ≤ 1.3 mA (AC 110 V) ≤ 0.8 mA (DC 24 V) |
| Minimum load current | ≥ 5 mA |
| Short-time withstand current | 2.2 A |
| Cable material | PUR |
| Conductor size | 0.5 mm² |
| Short-circuit protection | |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +80 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PBT |
| Housing length | 80 mm |
| Thread length | 50 mm |
| Tightening torque, max. | ≤ 35 Nm |
| Protection class | II |
| Rated insulation voltage U i | 250 V AC |
| Usage category | AC-140 DC-13 |
| Contamination rating | 3 |
| Rated impulse withstand voltage | 4 kV |
| MTTF D | 966 years |
| DC avg | 0 % |
| T M (mission time) | 20 years |
| Note | The values are reference values which may vary |
| Stainless steel (V2A, 304) | Approx. 0.8 |
| Aluminum (Al) | Approx. 0.45 |
| Copper (Cu) | Approx. 0.4 |
| Remark | Associated graphic see "Installation" |
| A | 18 mm |
| B | 36 mm |
| C | 18 mm |
| D | 24 mm |
| E | 16 mm |
| F | 64 mm |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| CCC certificate | ✔ |
| ECLASS 5.0 | 27270101 |
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
