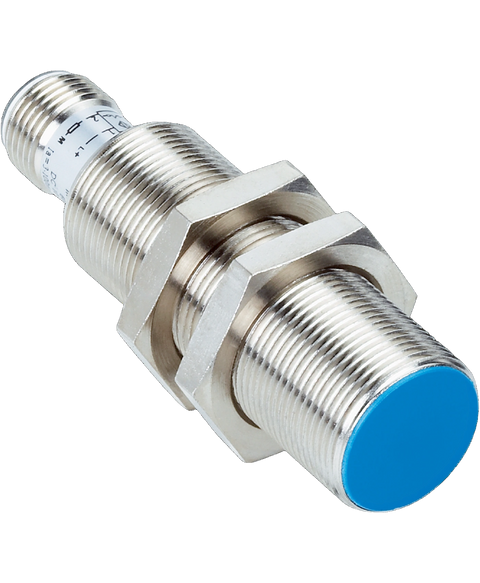

SICK IM18-08NDS-ZC1
(6020324) 8mm non-flush, NO, m12,im18-08nds-zc1 inductive, im18-08nds-zc1 induct. pr
This SICK IM18-08NDS-ZC1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805605992.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing | Metric | Standard design |
| Thread size | M18 x 1 |
| Diameter | Ø 18 mm |
| Sensing range S n | 8 mm |
| Safe sensing range S a | 6.48 mm |
| Installation type | Non-flush |
| Switching frequency | 300 Hz |
| Connection type | Male connector M12, 4-pin |
| Output function | NO |
| Electrical wiring | DC 2-wire |
| Enclosure rating | IP67 1) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2.8 V 1) |
| Time delay before availability | ≤ 50 ms |
| Hysteresis | 2 % ... 10 % |
| Reproducibility | ≤ 2 % 2) 3) |
| Temperature drift (of S r ) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current I a | ≤ 100 mA |
| Off-state current | ≤ 0.8 mA |
| Minimum load current | ≥ 3 mA |
| Short-circuit protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +70 °C |
| Housing material | Brass, Nickel-plated brass |
| Sensing face material | Plastic |
| Housing length | 64 mm |
| Thread length | 40 mm |
| Tightening torque, max. | 30 Nm |
| MTTF D | 93 years |
| DC avg | 0 % |
| Note | The values are reference values which may vary |
| Stainless steel (V2A, 304) | Approx. 0.77 |
| Aluminum (Al) | Approx. 0.53 |
| Copper (Cu) | Approx. 0.45 |
| Brass (Br) | Approx. 0.56 |
| Remark | Associated graphic see "Installation" |
| A | 18 mm |
| B | 36 mm |
| C | 18 mm |
| D | 24 mm |
| E | 16 mm |
| F | 64 mm |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECLASS 5.0 | 27270101 |
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
| Phase Status | Active |
