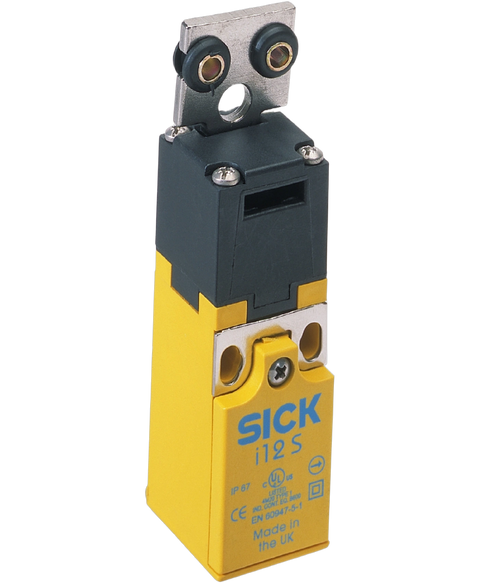

SICK I12-SA113
(6025057), safety switch, i12 series standard duty, 1 NC , 1 NO, m16 conduit entry, does not come with actuator, (6025057)
This SICK I12-SA113 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety interlock switches range and is referenced internally as PartLogic SKU PL26805613133.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Positive action N/C contacts | 1 |
| N/O contacts | 1 |
| Retaining force | ≤ 6 N |
| Actuation frequency | ≤ 7,200 /h |
| Actuation directions | 5 |
| Approach speed | ≤ 10 m/min |
| B 10d parameter | 2 x 10 switching cycles (with small load) |
| Type | Type 2 (EN ISO 14119) |
| Actuator coding level | Low coding level (EN ISO 14119) |
| Safe state in the event of a fault | The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. |
| Safe series connection | None, only individual wiring (with diagnostics) |
| Connection type | Cable gland, 1 x M16 |
| Conductor cross section | ≤ 1.5 mm² |
| Switching principle | Slow action switching element |
| Usage category | AC-15/DC-13 (IEC 60947-5-1) |
| Rated operating current (voltage) | 3 A (240 V AC) 2 A (24 V DC) |
| Rated insulation voltage U i | 240 V |
| Rated impulse withstand voltage U imp | 2,500 V AC |
| Short-circuit protection | T10/10A |
| Switching voltage | ≥ 5 V DC |
| Switching current (switching voltage) | 5 mA (5 V DC) |
| Weight | 0.08 kg |
| Housing material | Glass-fiber reinforced thermoplastic |
| Mechanical life | 1 x 10 switching cycles |
| Enclosure rating | IP67 (IEC 60529) |
| Ambient operating temperature | –20 °C ... +80 °C |
| Storage temperature | –20 °C ... +80 °C |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| TÜV approval | ✔ |
| TÜV approval annex | ✔ |
| ECLASS 5.0 | 27272602 |
| ECLASS 5.1.4 | 27272602 |
| ECLASS 6.0 | 27272602 |
| ECLASS 6.2 | 27272602 |
| ECLASS 7.0 | 27272602 |
| ECLASS 8.0 | 27272602 |
| ECLASS 8.1 | 27272602 |
| ECLASS 9.0 | 27272602 |
| ECLASS 10.0 | 27272602 |
| ECLASS 11.0 | 27272602 |
| ECLASS 12.0 | 27272602 |
| ETIM 5.0 | EC002592 |
| ETIM 6.0 | EC002592 |
| ETIM 7.0 | EC002592 |
| ETIM 8.0 | EC002592 |
| UNSPSC 16.0901 | 39122205 |
