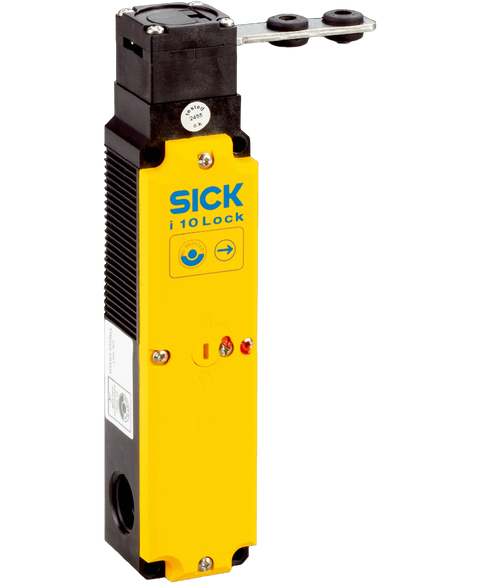

SICK i10-E0233
(6022585), sensor, i10 series, electrical locking, 24VDC, 3 NC , 1 NO, m20 conduit entry
This SICK i10-E0233 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety interlock switches range and is referenced internally as PartLogic SKU PL26805599376.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Sensor principle | Electro-mechanical |
| Locking principle | Power to lock |
| Positive action N/C solenoid monitoring contacts | 2 |
| N/O solenoid monitoring contacts | 1 |
| Positive action N/C door monitoring contacts | 0 |
| N/O door monitoring contacts | 0 |
| N/C contact for door monitoring | 1 |
| Locking force F max | 1,300 N (EN ISO 14119) |
| Locking force F Zh | 1,000 N (EN ISO 14119) |
| Actuation force | ≥ 10 N |
| Retaining force | ≤ 20 N |
| Actuation frequency | ≤ 1,200 /h |
| Actuation directions | 4 |
| Approach speed | ≤ 20 m/min |
| B 10d parameter | 3 x 10 switching cycles (with small load) |
| Type | Type 2 (EN ISO 14119) |
| Actuator coding level | Low coding level (EN ISO 14119) |
| Safe state in the event of a fault | The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. |
| Safe series connection | None, only individual wiring (with diagnostics) |
| Connection type | Cable gland, 3 x M20 |
| Conductor cross section | 0.34 mm² ... 1.5 mm² |
| Contamination rating | 3 |
| Switching principle | Slow action switching element |
| Usage category | AC-15/DC-13 (IEC 60947-5-1) |
| Rated operating current (voltage) | 4 A (230 V AC) 4 A (24 V DC) |
| Rated insulation voltage U i | 250 V |
| Rated impulse withstand voltage U imp | 2,500 V |
| Type of output | Electro-mechanical contacts |
| Power consumption | ≤ 8 W |
| Short-circuit protection | 4 A gG |
| Switching voltage | ≥ 12 V DC |
| Switching current (switching voltage) | 1 mA (24 V DC) |
| Solenoid operating voltage | (20.4 V DC ... 26.4 V DC) |
| Switch-on time of magnet | 100 % |
| Weight | 0.46 kg |
| Housing material | Glass-fiber reinforced thermoplastic |
| Mechanical life | 1 x 10 switching cycles |
| Enclosure rating | IP67 (IEC 60529) |
| Ambient operating temperature | –20 °C ... +55 °C |
| Storage temperature | –20 °C ... +55 °C |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| ECLASS 5.0 | 27272603 |
| ECLASS 5.1.4 | 27272603 |
| ECLASS 6.0 | 27272603 |
| ECLASS 6.2 | 27272603 |
| ECLASS 7.0 | 27272603 |
| ECLASS 8.0 | 27272603 |
| ECLASS 8.1 | 27272603 |
| ECLASS 9.0 | 27272603 |
| ECLASS 10.0 | 27272603 |
| ECLASS 11.0 | 27272603 |
| ECLASS 12.0 | 27272603 |
| ETIM 5.0 | EC002593 |
| ETIM 6.0 | EC002593 |
| ETIM 7.0 | EC002593 |
| ETIM 8.0 | EC002593 |
| UNSPSC 16.0901 | 39122205 |
