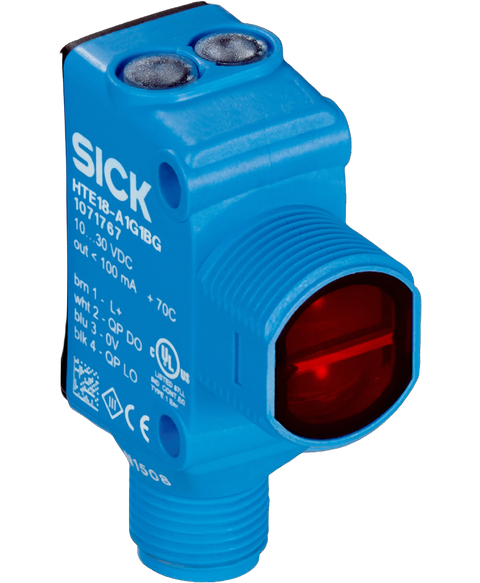

SICK HTB18-P4A2BB
Proximity sensor, photoelectric, background suppression, 300mm sensing range, pnp switch output, 10-30 V DC, m18 thread
This SICK HTB18-P4A2BB is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26801458765.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 16.2 mm x 48.5 mm x 31.8 mm |
| Housing design (light emission) | Hybrid |
| Thread diameter (housing) | M18 |
| Mounting system type | M18, head/side (24.1 … 25.4 mm) |
| Housing color | Blue |
| Sensing range max. | 5 mm ... 300 mm |
| Sensing range | 5 mm ... 150 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | 7 mm (300 mm) |
| Wave length | 631 nm |
| Potentiometer, right | Sensing range |
| Potentiometer, left | None |
| Special features | Signal strength light bar |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | pp |
| Current consumption | ≤ 20 mA |
| Switching output | PNP |
| Output function | Complementary |
| Switching mode | Light/dark switching |
| Switching output Q1 | PNP, Light switching |
| Switching output Q2 | PNP, Dark switching |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 0.5 ms |
| Switching frequency | 1,000 Hz |
| Connection type | Male connector M12, 4-pin |
| Cable material | Plastic, PVC |
| Circuit protection | A B D |
| Protection class | III |
| Weight | 18 g |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 IP69K |
| Items supplied | Fastening nut (1x), M18, plastic, black, flat |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 (The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector (Radio Safety Class A). It may cause radio interference if used in a residential area.) |
| Ambient operating temperature | –40 °C ... +65 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | E189383 |
| MTTF D | 523.9 years |
| DC avg | 0 % |
| BN 1 | + (L+) |
| WH 2 | Q 2 |
| BU 3 | - (M) |
| BK 4 | Q 1 |
| ECLASS 5.0 | 27270904 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270904 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
