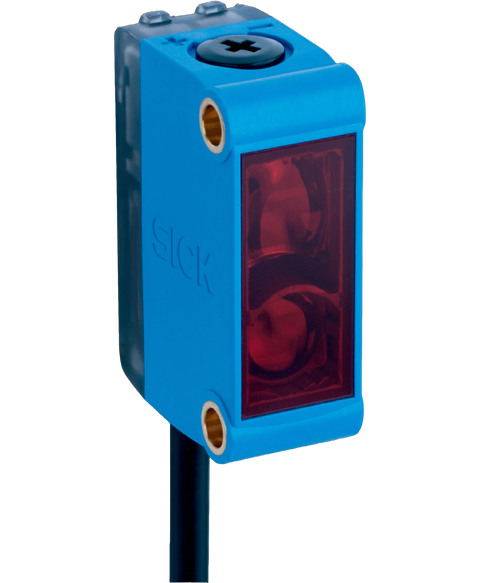

SICK GTE6-P1231
(1065760) pnp, lo,do, 2m cable, enerfetic proximity sensor,gte6-p1231, gte6-p1231 photoe
This SICK GTE6-P1231 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805606371.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Sensing range max. | 30 mm ... 900 mm |
| Sensing range | 40 mm ... 760 mm |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 5 mm (150 mm) |
| Wave length | 650 nm |
| Adjustment | Mechanical spindle, 5 turns |
| MTTF D | 1,749 years |
| DC avg | 0% |
| T M (mission time) | 20 years |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA |
| Protection class | III |
| Type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | V S - (≤ 3 V) / approx. 0 V |
| Output current I max. | ≤ 100 mA |
| Response time | < 1.25 ms |
| Switching frequency | 500 Hz |
| Circuit protection | A B D |
| Housing | Plastic, ABS/PC |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Conductor size | 0.14 mm² |
| Length of cable (L) | 2 m |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Weight | 60 g |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | E348498 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270903 |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
