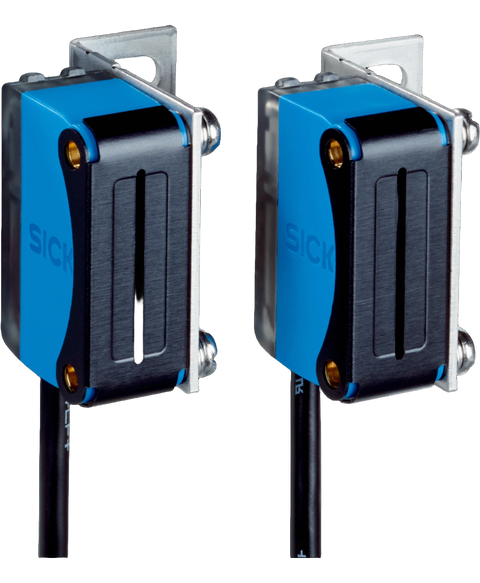

SICK GSE6-P1112
(1052452) through-beam pe, pnp l,d operate, 2m cable, mounting brackets,gse6-p1112, gse6-p1112 photoe
This SICK GSE6-P1112 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805607947.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Through-beam photoelectric sensor |
| Sensing range max. | 0 m ... 2 m |
| Polarisation filter | No |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 375 mm (12 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Special features | With BEF-SLIT MASK-G6 |
| Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A |
| MTTF D | 759 years |
| DC avg | 0 % |
| T M (mission time) | 20 years |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA |
| Protection class | III |
| Type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | V S - (≤ 3 V) / approx. 0 V |
| Output current I max. | ≤ 100 mA |
| Response time | < 500 µs |
| Switching frequency | 1,000 Hz |
| Circuit protection | A B D |
| Housing | Plastic, ABS/PC |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Conductor size | 0.14 mm² |
| Length of cable (L) | 2 m |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Weight | 170 g |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270901 |
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
