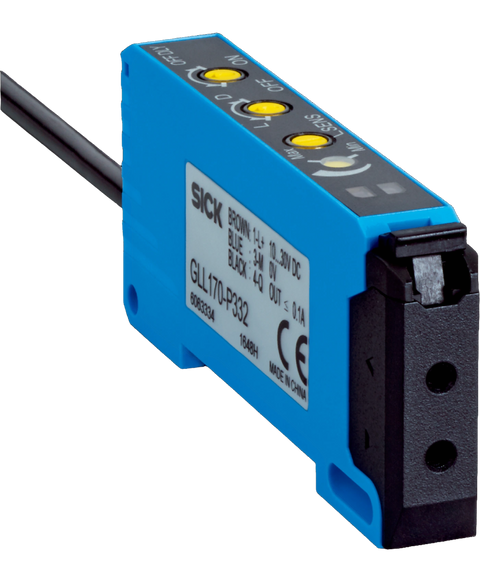

SICK GLL170-P332
(6063334), fiber-optic sensor, stand-alone, 0-190mm max range proximity, 0-800mm max range through-beam, visible red led, potentiometer adjust, 10-30VDC, pnp, light,dark, 2kHz, 3-wire, 2 meter cable, IP66, (6063334)
This SICK GLL170-P332 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805621029.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Device type | Fiber-optic amplifier |
| Device type detail | Stand-alone |
| Functional principle detail | Depending on the optical fiber cable used |
| Sensing range max. | Depending on the optical fiber cable used |
| Light source | LED |
| Type of light | Visible red light |
| Normative reference | EN 62471:2008-09 | IEC 62471:2006, modified |
| LED risk group marking | Free group |
| Wave length | 632 nm |
| Average service life | 100,000 h at T a = +25 °C |
| Potentiometer | For setting the sensing range/for setting the switching mode/for adjusting the switch-off delay |
| LED green | Operating indicator Static on: power on Dimmed in the range +/- 10 % of the switching threshold |
| LED yellow | Status of digital output Permanently on: Switching output active Permanently off: Digital output not active |
| MTTF D | 760 years |
| DC avg | 0 % |
| T M (mission time) | 20 years |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % |
| Current consumption | ≤ 30 mA |
| Protection class | III |
| Number | 1 |
| Type | PNP |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | Approx. U B -1.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | Approx. U B / < 1.5 V |
| Output current I max. | ≤ 100 mA |
| Circuit protection outputs | Reverse polarity protected |
| Response time | ≤ 250 µs |
| Switching frequency | 2 kHz |
| Time functions | Without time delay, off delay |
| Delay time | Selectable via rotary switch, 0 ms ... 40 ms |
| Function of pin 4/black (BK) | Digital output, received light → Output Q1 HIGH |
| Function of pin 4/black (BK) – detail | The pin 4 function of the sensor can be configured |
| Housing | Plastic, PC/POM |
| Dimensions (W x H x D) | 10 mm x 31.7 mm x 72.5 mm |
| Connection | Cable, 3-wire |
| Deep-freeze property | Do not bend below 0 °C |
| Conductor size | 0.2 mm² |
| Cable diameter | Ø 3.8 mm |
| Length of cable (L) | 2 m |
| Cable | Plastic, PVC |
| Weight | 63 g |
| Maximum tightening torque of the fixing screws | 0.5 Nm |
| Enclosure rating | IP66 (EN 60529) |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Typ. Ambient light immunity | Artificial light: ≤ 5,000 lx Sunlight: ≤ 60,000 lx |
| Shock resistance | 50 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27)) |
| Vibration resistance | 10 Hz ... 55 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) |
| Air humidity | 35 % ... 95 %, relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| UL File No. | NRKH2.E300503 & NRKH8.E300503 |
| RoHS certificate | ✔ |
| Timer function | Deactivated Switch-on delay Off delay Impulse (one shot) |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| ECLASS 5.0 | 27270905 |
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
