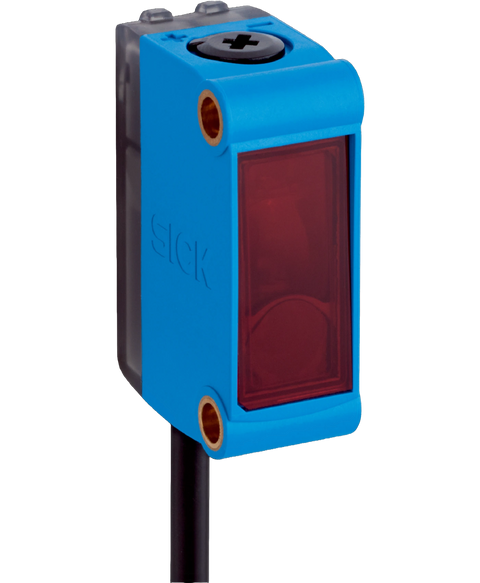

SICK GL6G-P1211
Photoelectric sensor, miniature, retro-reflective, dual lens, visible red led, potentiometer adjust, 10-30VDC, pnp, 1000Hz, light,dark, 3-wire, 2 meter cable, IP67, 1059924
This SICK GL6G-P1211 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL27193535421.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | With minimum distance to reflector (dual lens system) |
| Sensing range max. | 0.03 m ... 6 m |
| Sensing range | 0.07 m ... 5 m |
| Polarisation filter | Yes |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 8 mm (350 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 270° |
| Special applications | Detecting transparent objects |
| MTTF D | 1,630 years |
| DC avg | 0 % |
| T M (mission time) | 20 years |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA |
| Protection class | III |
| Type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | V S - (≤ 3 V) / approx. 0 V |
| Output current I max. | ≤ 100 mA |
| Response time | < 625 µs |
| Switching frequency | 1,000 Hz |
| Attenuation along light beam | > 20 % |
| Circuit protection | A B D |
| Special feature | Detecting transparent objects |
| Housing | Plastic, ABS/PC |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Conductor size | 0.14 mm² |
| Length of cable (L) | 2 m |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Weight | 60 g |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270902 |
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
