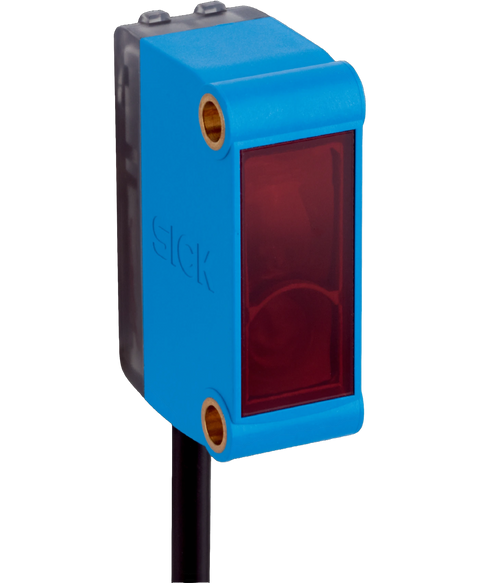

SICK GL6-P0111S61
Photoelectric retro-reflective sensor, dual lens, miniature g6, 6 m range, polarisation filter, pinpoint led, pnp light,dark switching, 10-30VDC, 4 pin m8 cable with connector, 1073738
This SICK GL6-P0111S61 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805596048.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | With minimum distance to reflector (dual lens system) |
| Sensing range max. | 0.03 m ... 7.2 m |
| Sensing range | 0.07 m ... 6 m |
| Polarisation filter | Yes |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 8 mm (350 mm) |
| Wave length | 650 nm |
| Adjustment | None |
| Special features | Cable with plug, M8, 4-pin, with knurled screws |
| MTTF D | 2,299 years |
| DC avg | 0 % |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA |
| Protection class | III |
| Type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | V S - (≤ 3 V) / approx. 0 V |
| Output current I max. | ≤ 100 mA |
| Response time | < 625 µs |
| Switching frequency | 1,000 Hz |
| Circuit protection | A B D |
| Housing | Plastic, ABS/PC |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable with plug, M8, 4-pin, with knurled screws, 3 m |
| Conductor size | 0.14 mm² |
| Length of cable (L) | 3 m |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PUR |
| Weight | 120 g |
| Enclosure rating | IP67 |
| Ambient operating temperature | –30 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270902 |
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
