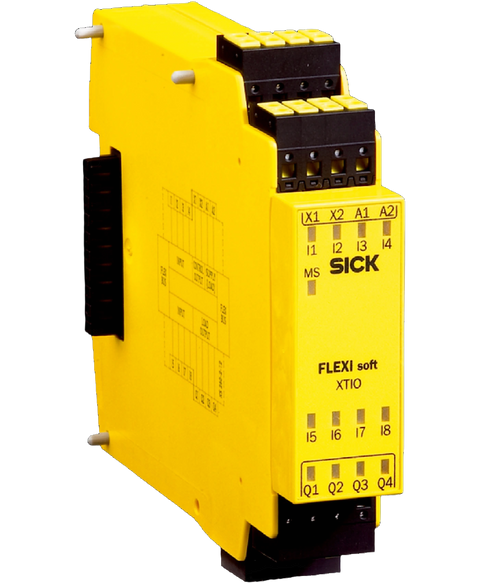

SICK FX3-XTIO84002
Safety controller, fx3 series, flexi soft, xtio, IP20, 2.4,3.8mA, 13,30VDC, 2.2W , 24VDC supply, 8 ms fast shut-off time, spring terminal
This SICK FX3-XTIO84002 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety controllers range and is referenced internally as PartLogic SKU PL26805676340.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Module | I/O module |
| Configuration method | Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) |
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (EN ISO 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFH D (mean probability of a dangerous failure per hour) | 4.8 x 10 (EN ISO 13849) 0.9 x 10 (EN ISO 13849) |
| T M (mission time) | 20 years (EN ISO 13849) |
| Flexi Loop-compatible | ✔ |
| Fast shut-off | ✔ |
| Fast shut-off time | 8 ms |
| Number of safety inputs | 8 |
| Number of test outputs | 2 |
| Number of safe outputs | 4 |
| Connection type | Plug-in spring terminals |
| Protection class | III (EN 61140) |
| Voltage supply | Via FLEXBUS+ |
| Internal power consumption | ≤ 2.2 W |
| Input voltage HIGH | 13 V DC ... 30 V DC |
| Input voltage LOW | –5 V DC ... 5 V DC |
| Input current HIGH | 2.4 mA ... 3.8 mA |
| Input current LOW | –2.5 mA ... 2.1 mA |
| Type of output | PNP semiconductors, short-circuit protected |
| Test pulse generator | 2 |
| Output voltage HIGH | 15 V DC ... 30 V DC |
| Output current | ≤ 120 mA |
| Supply voltage | 24 V DC (16.8 V DC ... 30 V DC) |
| Type of supply voltage | PELV or SELV |
| Dimensions (W x H x D) | 22.5 mm x 96.5 mm x 120.6 mm |
| Weight | 164 g (± 5 %) |
| Enclosure rating | IP20 (EN 60529) |
| Ambient operating temperature | –25 °C ... +55 °C |
| Storage temperature | –25 °C ... +70 °C |
| Air humidity | ≤ 95 %, Non-condensing |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| CCC certificate | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| KC Mark certificate | ✔ |
| cTUVus certificate | ✔ |
| S Mark certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27243001 |
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
