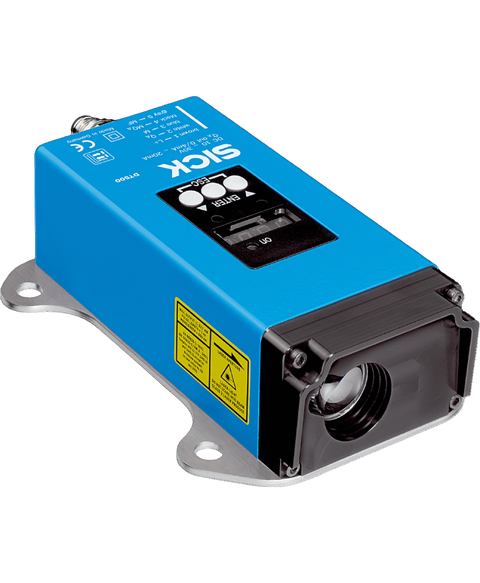

SICK DT500-A111S02
1042561, long range distance sensor, 10 v...30 V DC, reverse polarity protected, 3W, 500 ms, male connector, m12, 8-pin, IP65
This SICK DT500-A111S02 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Distance sensors > Laser distance range and is referenced internally as PartLogic SKU PL26805594732.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Measuring range | 0.2 m ... 30 m, 90% remission factor 0.8 m ... 15 m, 6% remission factor |
| Target | Natural objects |
| Resolution | 12 bit |
| Repeatability | 1 mm |
| Measurement accuracy | ± 3 mm |
| Response time | 250 ms |
| Output time | 250 ms |
| Light source | Laser, red |
| Type of light | Visible red light |
| Typ. light spot size (distance) | 10 mm (at 7 m) |
| Normative reference | IEC 60825-1:2014, EN 60825-1:2014 |
| Laser class | 2 |
| Number | 1 |
| Type | Current output |
| Current | 0 mA ... 20 mA |
| Multifunctional input (MF) | PNP |
| Laser-off input | Laser-off input inverted, HIGH laser on |
| Supply voltage U B | DC 10 V ... 30 V, reverse polarity protected U V ≥ DC 24 V for devices with heating |
| Power consumption | Typ. 3 W |
| Ripple | 5 V pp |
| Initialization time | 500 ms |
| Enclosure rating | IP65 |
| Protection class | II |
| Dimensions (W x H x D) | 69 mm x 50 mm x 153 mm |
| Housing material | Metal (Aluminum die cast) |
| Window material | Glass |
| Weight | 1,000 g |
| Ambient temperature, operation | –10 °C ... +45 °C –10 °C ... +75 °C, operation with cooling case |
| Ambient temperature, storage | –25 °C ... +75 °C |
| Temperature drift | Typ. 0.05 mm/K |
| Typ. Ambient light immunity | ≤ 3,000 lx |
| Mechanical load | Shock: (EN 600 68-2-27 / –2-29) Sine: (EN 600 68-2-6) Noise: (EN 600 68-2-64) |
| Electromagnetic compatibility (EMC) | EN 61000-6-2 / EN 61000-6-3 |
| ECLASS 5.0 | 27270801 |
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
