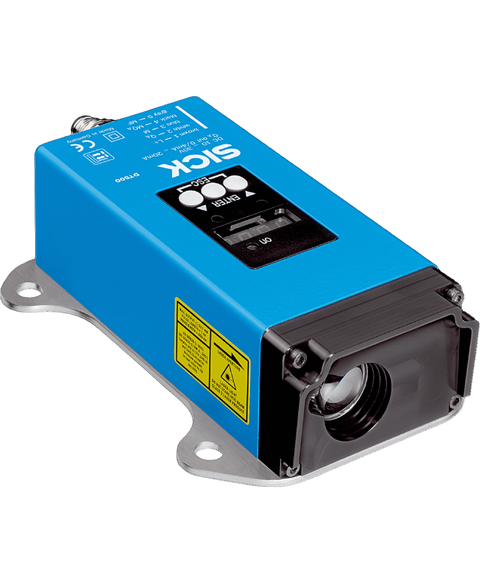

SICK DT500-A111
(1026515), distance measuring device, 0.2-30 m measuring range, 1mm repeatability, 0-20mA, 3mm accuracy, 1026515
This SICK DT500-A111 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Distance sensors > Laser distance range and is referenced internally as PartLogic SKU PL26805593709.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Measuring range | 0.2 m ... 30 m, 90% remission factor 0.8 m ... 15 m, 6% remission factor |
| Target | Natural objects |
| Resolution | 12 bit |
| Repeatability | 1 mm |
| Measurement accuracy | ± 3 mm |
| Response time | 250 ms |
| Output time | 250 ms |
| Light source | Laser, red |
| Type of light | Visible red light |
| Typ. light spot size (distance) | 10 mm (at 7 m) |
| Normative reference | IEC 60825-1:2014, EN 60825-1:2014 |
| Laser class | 2 |
| MTTF D | 101 years |
| DC avg | 0% |
| Number | 1 |
| Type | Current output |
| Current | 0 mA ... 20 mA |
| Multifunctional input (MF) | PNP |
| Laser-off input | > 12 V |
| Supply voltage U B | DC 10 V ... 30 V, reverse polarity protected U V ≥ DC 24 V for devices with heating |
| Power consumption | Typ. 3 W |
| Ripple | 5 V pp |
| Initialization time | 500 ms |
| Enclosure rating | IP65 |
| Protection class | II |
| Dimensions (W x H x D) | 69 mm x 50 mm x 153 mm |
| Housing material | Metal (Aluminum die cast) |
| Window material | Glass |
| Weight | 1,000 g |
| Ambient temperature, operation | –10 °C ... +45 °C –10 °C ... +75 °C, operation with cooling case |
| Ambient temperature, storage | –25 °C ... +75 °C |
| Temperature drift | Typ. 0.05 mm/K |
| Typ. Ambient light immunity | ≤ 3,000 lx |
| Mechanical load | Shock: (EN 600 68-2-27 / –2-29) Sine: (EN 600 68-2-6) Noise: (EN 600 68-2-64) |
| Electromagnetic compatibility (EMC) | EN 61000-6-2 / EN 61000-6-3 |
| ECLASS 5.0 | 27270801 |
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
