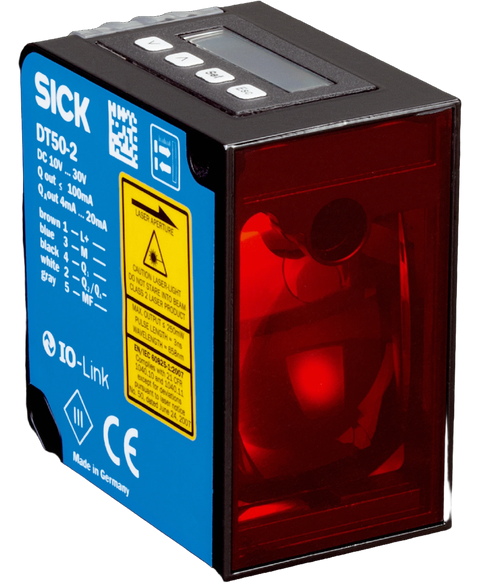

SICK DT50-2B215252
Distance sensor, mid range, 30000mm max, targets natural objects, 0.1mm resolution, 16 bit, pnp,npn, 10-30VDC, 5 pin m12 connector, 1065661
This SICK DT50-2B215252 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Distance sensors > Laser distance range and is referenced internally as PartLogic SKU PL26805616772.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Measuring range | 200 mm ... 30,000 mm, 90% remission factor 200 mm ... 17,000 mm, 18% reflection factor 200 mm ... 10,000 mm, 6% remission factor |
| Target | Natural objects |
| Resolution | 100 µm |
| Repeatability | ≥ 0.5 mm |
| Measurement accuracy | ± 7 mm |
| Response time | 0.83 ms ... 75 ms, 0.83 ms / 3.33 ms / 8.33 ms / 25 ms / 75 ms |
| Switching frequency | 1,000 Hz/250 Hz/100 Hz/33 Hz/11 Hz |
| Output time | 0.33 ms/1.33 ms/3.33 ms/10 ms/30 ms |
| Light source | Laser, red |
| Type of light | Visible red light |
| Typ. light spot size (distance) | 10 mm x 10 mm (at 10 m) |
| Normative reference | IEC 60825-1:2014, EN 60825-1:2014 |
| Laser class | 2 |
| Average laser service life (at 25 °C) | 100,000 h |
| Additional function | Set speed: Super Fast ... Super Slow Teach-in, scaling and inversion of analog output Output Q 2 adaptable: Current output / Voltage output / Digital output / Q 1 not / deactivated Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB) Teach-in, scaling and inversion of digital output Multifunctional input: laser off / external teach / deactivated Reset to factory default Shape comparison: based on the distance measured over a period of time Hold measurement value Switch-off or lock display Easy teach option |
| MTTF D | 101 years |
| DC avg | 0% |
| IO-Link | ✔ , IO-Link V1.1, COM3 (230,4 kBaud) |
| Function | Output Q 2 adaptable: Current output / Voltage output / Digital output / Q 1 not / deactivated |
| Number | 1 ... 2 |
| Type | Current output / voltage output |
| Maximum output current I A | ≤ 100 mA |
| Current | 4 mA ... 20 mA, ≤ 450 Ω |
| Voltage | 0 V ... 10 V, ≥ 50,000 Ω |
| Multifunctional input (MF) | 1 x |
| Hysteresis | 0 mm ... 29,950 mm |
| Supply voltage U B | DC 10 V ... 30 V |
| Power consumption | ≤ 1.7 W |
| Ripple | ≤ 5 V pp |
| Initialization time | ≤ 300 ms |
| Warm-up time | ≤ 15 min |
| Display | 3 x LED, LC display |
| Enclosure rating | IP65 IP67 |
| Protection class | III |
| Dimensions (W x H x D) | 36.2 mm x 63 mm x 58.6 mm |
| Housing material | Metal (zinc diecast) |
| Window material | Plastic (PMMA) |
| Weight | 235 g |
| Ambient temperature, operation | –40 °C ... +65 °C, U v ≤ 24 V –30 °C ... +140 °C, operation with 2 cooling plates ( 2055755 ) / optionally with heat protection filter ( 2085598 ) |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Max. rel. humidity (not condensing) | ≤ 95 % |
| Typ. Ambient light immunity | 40,000 lx |
| Vibration resistance | (IEC 60068-2-64:2008) Noise test: 20 Hz ... 500 Hz, 10 g RMS, 2 h / axis |
| Shock resistance | (IEC 60068-2-27:2008) 30 g, 11 ms, 3 axes, ± 3 single shocks / axis (IEC 60068-2-27:2008) 10 g, 6 ms, 3 axes, ± 500 shocks / axis (IEC 60068-2-27:2008) 70 g, 6 ms, Y-axis, ± 100,000 shocks |
| Electromagnetic compatibility (EMC) | EN 61000-6-2, EN 61000-6-4 |
| ECLASS 5.0 | 27270801 |
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
