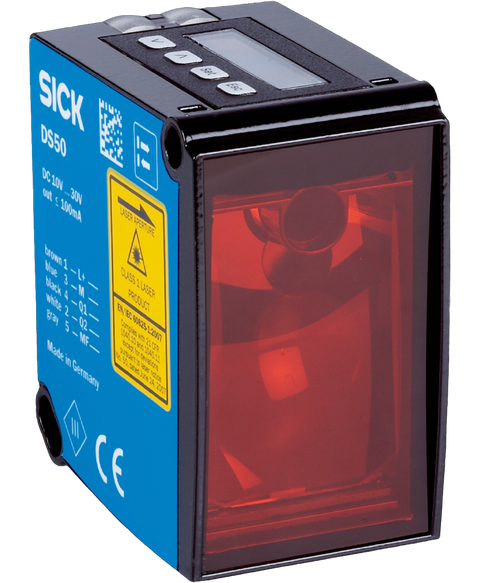

SICK DS50-P1122
(1047405), mid range distance sensor, 10-30VDC supply, 5-pin m12 connector, lcd, IP65, 200-10000mm range (90% remission), visible red laser, pnp, (1047405)
This SICK DS50-P1122 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Distance sensors > Laser distance range and is referenced internally as PartLogic SKU PL26805609338.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Measuring range | 200 mm ... 10,000 mm, 90% remission factor 200 mm ... 6,000 mm, 18% reflection factor 200 mm ... 4,000 mm, 6% remission factor |
| Target | Natural objects |
| Resolution | 1,000 µm ... 1 mm |
| Repeatability | ≥ 2.5 mm |
| Measurement accuracy | ± 10 mm |
| Response time | 20 ms ... 100 ms, 20 ms / 100 ms |
| Switching frequency | 25 Hz / 5 Hz |
| Light source | Laser, red |
| Type of light | Visible red light |
| Typ. light spot size (distance) | 15 mm x 15 mm (10 m) |
| Normative reference | IEC 60825-1:2014, EN 60825-1:2014 |
| Laser class | 1 |
| Average laser service life (at 25 °C) | 100,000 h |
| Additional function | Set moving average: fast/slow Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB) Teach-in, scaling and inversion of digital output Set hysteresis Multifunctional input: laser off / external teach / deactivated Unique measurement value Crosstalk safety Switch-off display Reset to factory default Lock user interface |
| MTTF D | 101 years |
| DC avg | 0% |
| Number | 2 |
| Type | PNP |
| Maximum output current I A | ≤ 100 mA |
| Multifunctional input (MF) | 1 x |
| Hysteresis | 1 mm ... 9,999 mm |
| Supply voltage U B | DC 10 V ... 30 V |
| Power consumption | ≤ 1.85 W |
| Ripple | ≤ 5 V pp |
| Initialization time | ≤ 350 ms |
| Warm-up time | ≤ 15 min |
| Display | LC display, 2 x LED |
| Enclosure rating | IP65 |
| Protection class | III |
| Dimensions (W x H x D) | 36.1 mm x 62.7 mm x 57.7 mm |
| Housing material | Metal (zinc diecast) |
| Window material | Plastic (PMMA) |
| Weight | 200 g |
| Ambient temperature, operation | –30 °C ... +65 °C –30 °C ... +80 °C, operation with 2 cooling plates –30 °C ... +140 °C, operation with 2 cooling plates and protection filter |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Max. rel. humidity (not condensing) | ≤ 95 % |
| Typ. Ambient light immunity | 40,000 lx |
| Vibration resistance | EN 60068-2-6, EN 60068-2-64 |
| Shock resistance | EN 60068-2-27 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| ECLASS 5.0 | 27270801 |
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
