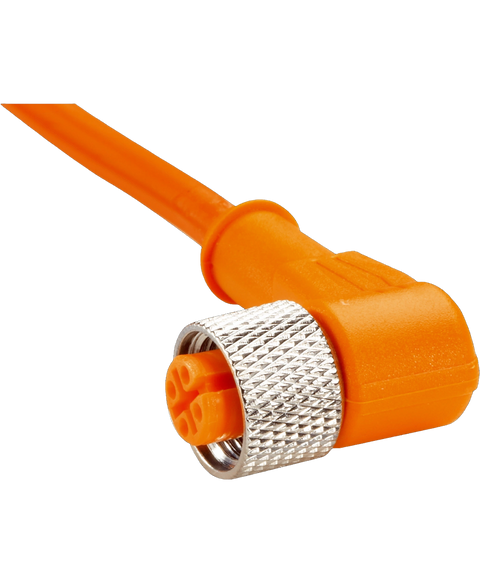

SICK DOL-1204-W10M
Discontinued by manufacturer, flying leads cordset, female m12 connector, 4-pin, right-angle, pvc, orange, 10 meter, (6010541)
This SICK DOL-1204-W10M is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Accessories > Cables range and is referenced internally as PartLogic SKU PL26805679705.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Connection type head A | Female connector, M12, 4-pin, angled |
| Connection type head B | Flying leads |
| Connection type | Flying leads |
| Connector material | TPU |
| Connector color | Orange |
| Locking nut material | CuZn, nickel-plated brass |
| Tightening torque | 0.5 Nm |
| Cable | 10 m, 4-wire, PVC |
| Jacket material | PVC |
| Jacket color | Orange |
| Cable diameter | 5 mm |
| Conductor cross section | 0.25 mm² |
| Shielding | Unshielded |
| Flexible use | > 10 x cable diameter | +5 °C ... +80 °C |
| Stationary position | > 5 x cable diameter | –40 °C ... +80 °C |
| Current loading | 4 A |
| Application | Zones with chemicals |
| Enclosure rating | IP67 |
| Head | –25 °C ... +80 °C |
| ECLASS 5.0 | 19030312 |
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
| Phase Status | In Phase Out |
