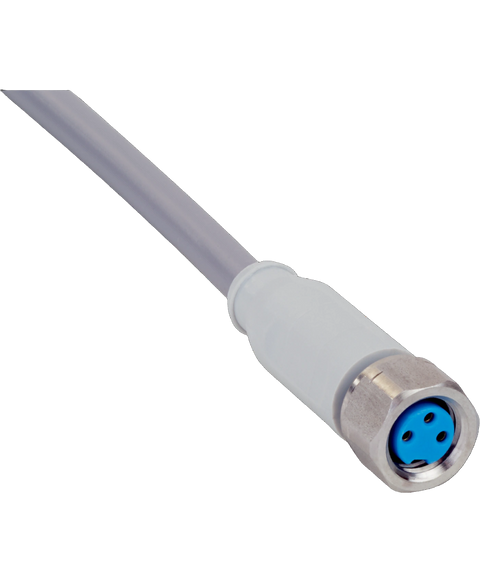

SICK DOL-0803-G05M
Discontinued by manufacturer, connector cable, 4A, 60 v, female m8 connector, 3 pin, straight, 1x flying lead, 5 m cable length, 3 wire, orange, -40 to +80 degrees c, IP67, 6022009, successor is yf8u13-050va1xleax
This SICK DOL-0803-G05M is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Accessories > Cables range and is referenced internally as PartLogic SKU PL26801449915.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Connection type head A | Female connector, M8, 3-pin, straight |
| Connection type head B | Flying leads |
| Connection type | Flying leads |
| Connector material | PUR |
| Connector color | Blue |
| Locking nut material | Stainless steel (V4A/1.4404) |
| Tightening torque | 0.4 Nm |
| Width across flats | 10 |
| Cable | 5 m, 3-wire, PVC |
| Jacket material | PVC |
| Jacket color | Gray |
| Cable diameter | 4.5 mm |
| Conductor cross section | 0.25 mm² |
| Shielding | Unshielded |
| Flexible use | > 10 x cable diameter |
| Stationary position | > 5 x cable diameter |
| Rated impulse voltage | 1.5 kV |
| Current loading | 4 A |
| Signal type | Sensor/actuator cable |
| Application | Uncontaminated zones Hygienic and washdown zones Zones with chemicals |
| Note | This product is generally resistant to chemical cleaning agents (see ECOLAB). Please do not use cleaning agents of any other Kind. Not resistant against lactic acid & hydrogen peroxide (H2O2) |
| UL File No. | CYJV.E335179 |
| Enclosure rating | IP65/ IP67/ IP69K |
| Head | –25 °C ... +85 °C |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECOLAB certificate | ✔ |
| ECLASS 5.0 | 19030312 |
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
