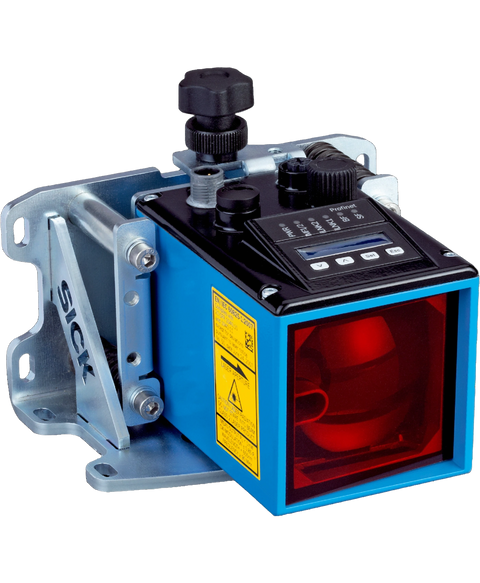

SICK DL100-23AA2101
(1052696) distance measuring device, reflex, 150mm - 300m, ssi,dl100-23aa2101, dl100-23aa2101 distan
This SICK DL100-23AA2101 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Distance sensors > Laser distance range and is referenced internally as PartLogic SKU PL26805606520.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Measuring range | 0.15 m ... 300 m, on “diamond grade” reflective tape |
| Scope | Indoor |
| Target | Reflector |
| Resolution | 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm |
| Repeatability | 2 mm |
| Measurement accuracy | ± 3 mm |
| Response time | 2 ms |
| Output time | Measurement cycle synchronous to PLC request |
| Light source | Laser, red |
| Type of light | Visible red light |
| Typ. light spot size (distance) | 5 mm + (2 mm x distance in m) |
| Normative reference | IEC 60825-1:2014, EN 60825-1:2014 |
| Laser class | 2 |
| Max. movement speed | 15 m/s |
| Acceleration (max.) | ≤ 15 m/s² |
| MTTF D | 101 years |
| DC avg | 0% |
| SSI | ✔ |
| Number | 2 |
| Type | Push-pull: PNP/NPN |
| Function | Distance: Distance switching output |
| Maximum output current I A | ≤ 100 mA |
| Multifunctional input (MF) | 1 x MF1 |
| Supply voltage U B | DC 18 V ... 30 V, limit values |
| Current consumption | At 24 V DC < 250 mA |
| Ripple | 5 V pp |
| Modulation frequency | Fix |
| Initialization time | Typ. 1.5 s |
| Display | 6 digit 5 x 7 dot matrix display, LEDs |
| Enclosure rating | IP65 |
| Protection class | III |
| Dimensions (W x H x D) | 69.4 mm x 82.5 mm x 100.2 mm |
| Housing material | Metal (Aluminum die cast) |
| Window material | Plastic (PMMA) |
| Weight | Approx. 800 g (with mounting bracket: approx. 1,600 g) |
| Ambient temperature, operation | –20 °C ... +55 °C –20 °C ... +75 °C, operation with cooling case |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Effect of air pressure | 0.3 ppm/hPa |
| Effect of air temperature | 1 ppm/K |
| Temperature drift | Typ. 0.1 mm/K |
| Typ. Ambient light immunity | ≤ 100,000 lx |
| Mechanical load | Shock: (EN 600 68-2-27) Sine: (EN 600 68-2-6) Noise: (EN 600 68-2-64) |
| Electromagnetic compatibility (EMC) | EN 61000-6-2, EN 61000-6-4 |
| ECLASS 5.0 | 27270801 |
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
