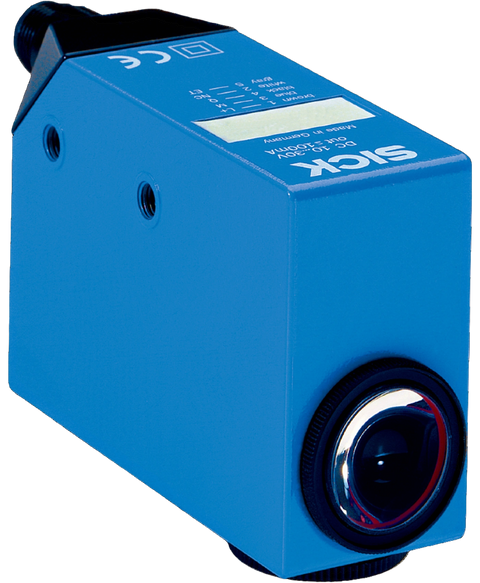

SICK CS81-P1112
Color sensor, 1 pnp output, 12.5mm focus, 5-pin , m12, (1028224)
This SICK CS81-P1112 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Contrast sensors range and is referenced internally as PartLogic SKU PL26805612900.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing design | Middle |
| Dimensions (W x H x D) | 30.4 mm x 80 mm x 53 mm |
| Light source | LED, RGB 1) |
| Light spot size | 2 mm x 4 mm |
| Light spot direction | Vertical |
| Wave length | 640 nm, 525 nm, 470 nm |
| Sensing distance | ≤ 12.5 mm 2) |
| Sensing distance tolerance | ± 3 mm |
| Adjustment | Teach-in button |
| Teach-in mode | Static 1-point teach-in |
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 3) |
| Switching frequency | 1 kHz 4) 3 kHz 6 kHz Adjustable |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = U V ≤ 2 V / LOW approx. 0 V |
| Output (channel) | 1 color |
| Output current I max. | 100 mA 5) |
| Input, teach-in (ET) | PNP Teach: U = 10 V ... V Run: U |
| Input, blanking input (AT) | PNP Blanked: U > 10 V ... Free-running: U 6) |
| Retention time (ET) | 25 ms, non-volatile memory |
| Time delay | Deactivation delay 20 ms, shiftable |
| Protection class | II 7) |
| Circuit protection | U V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Housing material | Zinc diecast |
| Weight | 400 g |
| Ambient operating temperature | –10 °C ... +55 °C |
| Ambient temperature, storage | –20 °C ... +75 °C |
| Shock load | According to IEC 60068 |
| Enclosure rating | IP67 |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| ECLASS 5.0 | 27270907 |
| ECLASS 5.1.4 | 27270907 |
| ECLASS 6.0 | 27270907 |
| ECLASS 6.2 | 27270907 |
| ECLASS 7.0 | 27270907 |
| ECLASS 8.0 | 27270907 |
| ECLASS 8.1 | 27270907 |
| ECLASS 9.0 | 27270907 |
| ECLASS 10.0 | 27270907 |
| ECLASS 11.0 | 27270907 |
| ECLASS 12.0 | 27270907 |
| ETIM 5.0 | EC001817 |
| ETIM 6.0 | EC001817 |
| ETIM 7.0 | EC001817 |
| ETIM 8.0 | EC001817 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Phase Status | In Phase Out |
