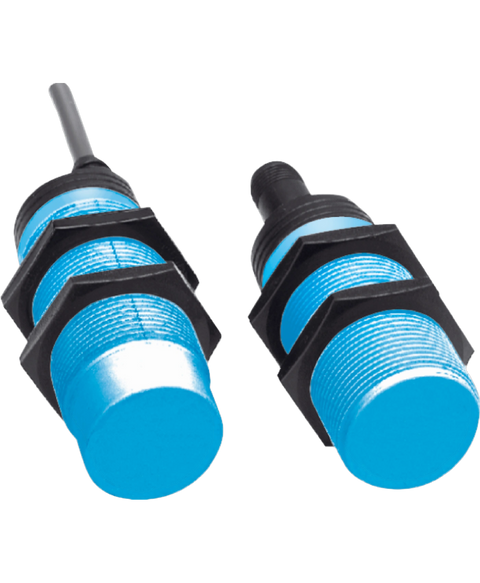

SICK CM30-16BPP-KW1
Discontinued by manufacturer, proximity sensor, capacitive, 12mm flush, pnp, NO,NC, cable, (6020473), replaced by cm30-16bpp-ew1
This SICK CM30-16BPP-KW1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Capacitive range and is referenced internally as PartLogic SKU PL26805608071.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing | Cylindrical thread design |
| Thread size | M30 x 1.5 |
| Diameter | Ø 30 mm |
| Sensing range S n | 2 mm ... 16 mm |
| Safe sensing range S a | 11.52 mm |
| Installation type | Flush |
| Switching frequency | 50 Hz |
| Connection type | Cable, 4-wire, 2 m 1) |
| Switching output | PNP |
| Output function | Complementary |
| Electrical wiring | DC 4-wire |
| Adjustment | Potentiometer (Sensitivity) |
| Enclosure rating | IP67 2) |
| Supply voltage | 10 V DC ... 36 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 2.5 V DC 2) |
| Current consumption | 10 mA 3) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 4 % ... 20 % |
| Reproducibility | ≤ 5 % 4) 5) |
| Temperature drift (of S r ) | ± 10 % |
| EMC | According to EN 60947-5-2 6) |
| Continuous current I a | ≤ 200 mA |
| Cable material | PVC |
| Conductor size | 0.34 mm² |
| Short-circuit protection | ✔ |
| Reverse polarity protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +80 °C |
| Housing material | Plastic, PBT |
| Housing length | 63.6 mm |
| Thread length | 50 mm |
| Tightening torque, max. | 7.5 Nm |
| Items supplied | Mounting nut, PA12 plastic (2x) Screwdriver for potentiometer adjustment (1 x) |
| Note | The values are reference values which may vary |
| Metal | 1 |
| Water | 1 |
| PVC | Approx. 0.4 |
| Oil | Approx. 0.25 |
| Glass | 0.6 |
| Ceramics | 0.5 |
| Alcohol | 0.7 |
| Wood | 0.2 ... 0.7 |
| Remark | Associated graphic see "Installation" |
| B | 30 mm |
| C | 30 mm |
| D | 48 mm |
| ECLASS 5.0 | 27270102 |
| ECLASS 5.1.4 | 27270102 |
| ECLASS 6.0 | 27270102 |
| ECLASS 6.2 | 27270102 |
| ECLASS 7.0 | 27270102 |
| ECLASS 8.0 | 27270102 |
| ECLASS 8.1 | 27270102 |
| ECLASS 9.0 | 27270102 |
| ECLASS 10.0 | 27270102 |
| ECLASS 11.0 | 27270102 |
| ECLASS 12.0 | 27274201 |
| ETIM 5.0 | EC002715 |
| ETIM 6.0 | EC002715 |
| ETIM 7.0 | EC002715 |
| ETIM 8.0 | EC002715 |
| UNSPSC 16.0901 | 39122230 |
| Phase Status | Phased Out |
