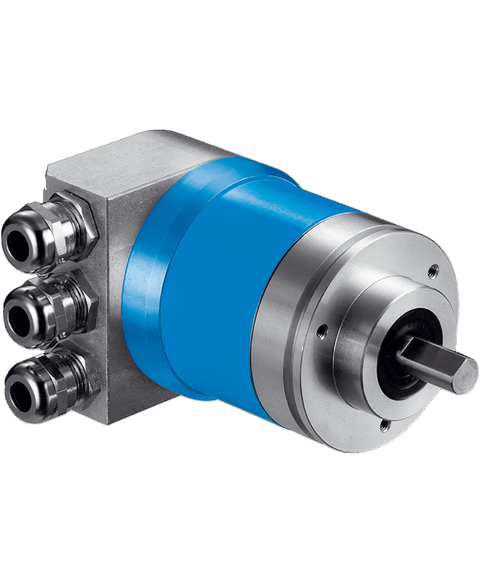

SICK ATM60-P4H13X13
Absolute Multiturn Encoder, SSI, 13×13 Bit Max Resolution, Solid Shaft, 10mm Diameter
This SICK ATM60-P4H13X13 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Encoders > Absolute encoders range and is referenced internally as PartLogic SKU PL26801430239.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| MTTF D (mean time to dangerous failure) | 150 years (EN ISO 13849-1) 1) |
| Number of steps per revolution (max. resolution) | 8,192 (13 bit) |
| Number of revolutions | 8,192 (13 bit) |
| Max. resolution (number of steps per revolution x number of revolutions) | 13 bit x 13 bit (8,192 x 8,192) |
| Measuring step | 0.043° |
| Error limits G | ± 0.25° 1) |
| Repeatability standard deviation σ r | 0.1° 2) |
| Communication interface | PROFIBUS DP |
| Communication Interface detail | DPV0 |
| Data protocol | Profile for encoders (07hex) – Class 2 |
| Address setting | 0 ... 127, DIP switches or protocol |
| Data transmission rate (baud rate) | 9.6 kBaud ... 12 MBaud, automatic detection |
| Initialization time | 1,250 ms 1) |
| Position forming time | 0.25 ms |
| Status information | LED green (operation), LED red ( bus activity) |
| Bus termination | DIP switch 2) |
| Set (electronic adjustment) | Via PRESET push button or protocol |
| Connection type | Bus adapter 1) |
| Supply voltage | 10 ... 32 V |
| Power consumption | ≤ 2 W (without load) |
| Reverse polarity protection | ✔ |
| Mechanical design | Solid shaft, face mount flange |
| Shaft diameter | 10 mm |
| Shaft length | 19 mm |
| Weight | 0.59 kg 1) |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Start up torque | 2.5 Ncm (+20 °C), with shaft seal 0.5 Ncm (+20 °C), without shaft seal 2) |
| Operating torque | 1.8 Ncm (+20 °C), with shaft seal 0.3 Ncm (+20 °C), without shaft seal 2) |
| Permissible shaft loading | 300 N (radial) 50 N (axial) |
| Operating speed | ≤ 6,000 min⁻¹ 3) |
| Moment of inertia of the rotor | 35 gcm² |
| Bearing lifetime | 3.6 x 10 9 revolutions |
| Angular acceleration | ≤ 500,000 rad/s² |
| EMC | According to EN 61000-6-2 and EN 61000-6-3 |
| Enclosure rating | IP67, with shaft seal (IEC 60529) 1) IP43, without shaft seal, on encoder flange not sealed (IEC 60529) 1) IP66, without shaft seal, on encoder flange sealed (IEC 60529) 1) |
| Permissible relative humidity | 98 % |
| Operating temperature range | –20 °C ... +85 °C |
| Storage temperature range | –40 °C ... +100 °C, without package |
| Resistance to shocks | 100 g, 6 ms (EN 60068-2-27) |
| Resistance to vibration | 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| ECLASS 5.0 | 27270502 |
| ECLASS 5.1.4 | 27270502 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 8.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 10.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 12.0 | 27270502 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
| Phase Status | Phased Out |
