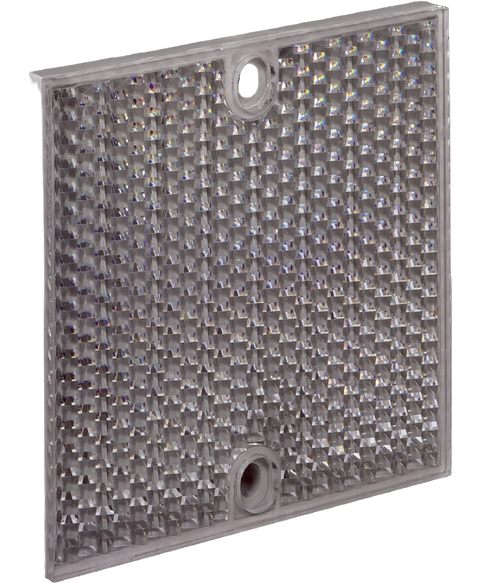

SICK 1003865
PL80A Reflector ( WL27-2F430 ) WIDTH: 80mm, HEIGHT: 80mm, MATERIAL: PLASTIC
This SICK 1003865 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors > Accessories range and is referenced internally as PartLogic SKU PL26805428285.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product segment | Reflectors and optics |
| Product | Reflectors |
| Product version | Standard reflectors |
| Description | Rectangular, screw connection |
| Mounting system type | Screw-on |
| Material | PMMA/ABS |
| Ambient operating temperature | –30 °C ... +65 °C |
| Dimensions (W x H x L) | 84 mm x 84 mm |
| ECLASS 5.0 | 27279203 |
| ECLASS 5.1.4 | 27279203 |
| ECLASS 6.0 | 27279203 |
| ECLASS 6.2 | 27279203 |
| ECLASS 7.0 | 27279203 |
| ECLASS 8.0 | 27279203 |
| ECLASS 8.1 | 27279203 |
| ECLASS 9.0 | 27273601 |
| ECLASS 10.0 | 27273601 |
| ECLASS 11.0 | 27273601 |
| ECLASS 12.0 | 27273601 |
| ETIM 5.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| UNSPSC 16.0901 | 39111827 |
| RoHS manufacturer declaration | ✔ |
