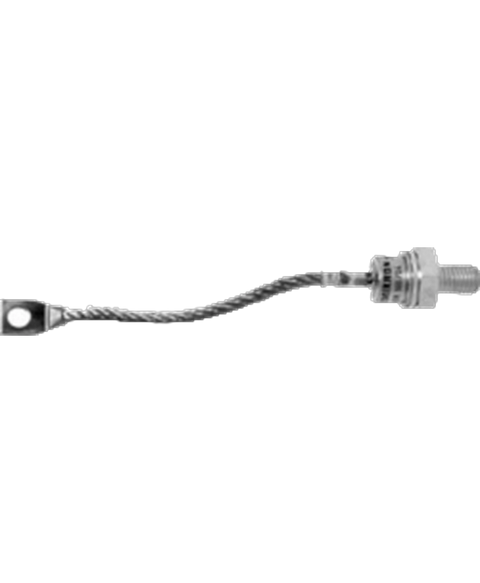

Semikron SKR130,12
Semikron SKR130,12 diode module, 1200V, 165A.
This Semikron SKR130/12 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Thyristor modules range and is referenced internally as PartLogic SKU PL26801467036.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Element Configuration | Single |
| Forward Current | 165 A |
| Forward Voltage | 1.5 V |
| Height | 27.7 mm |
| Length | 27.7 mm |
| Max Forward Surge Current (Ifsm) | 2.5 kA |
| Max Operating Temperature | 180 °C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2 kV |
| Min Operating Temperature | -40 °C |
| Mount | Stud |
| Number of Pins | 2 |
| Peak Non-Repetitive Surge Current | 2.5 kA |
| Peak Reverse Current | 22 mA |
| REACH SVHC | No |
| RoHS | Compliant |
| Width | 24 mm |
