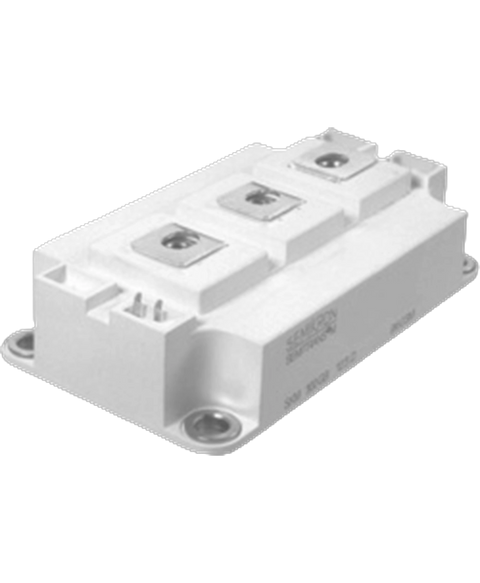

Semikron SKM200GB12T4
IGBT Module, Half Bridge, 313 A, 1.8 V, 175 °C, Module
This Semikron SKM200GB12T4 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Igbt modules range and is referenced internally as PartLogic SKU PL26805603081.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Collector Emitter Breakdown Voltage | 1.2 kV |
| Collector Emitter Saturation Voltage | 1.8 V |
| Collector Emitter Voltage (VCEO) | 1.2 kV |
| Element Configuration | Dual |
| Height | 30.5054 mm |
| Length | 106.3752 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -40 °C |
| Mount | Screw |
| Number of Pins | 7 |
| REACH SVHC | No |
| RoHS | Compliant |
| Width | 61.3918 mm |
