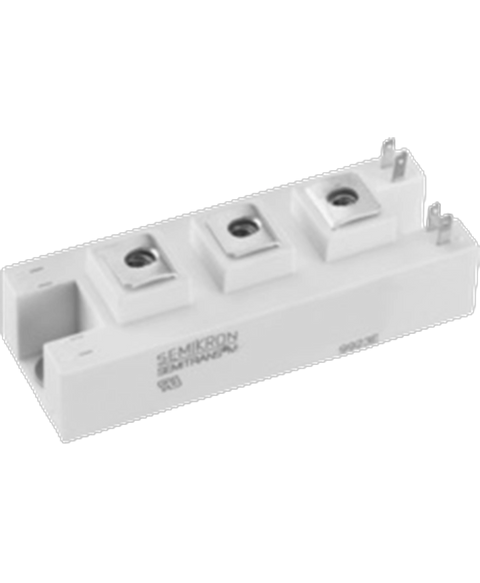

Semikron SKM100GB125DN
IGBT Module, VCE 1200 V, IC 100 A, N-Channel, SEMITRANS2
This Semikron SKM100GB125DN is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Igbt modules range and is referenced internally as PartLogic SKU PL26805617418.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Collector Emitter Breakdown Voltage | 1.2 kV |
| Collector Emitter Saturation Voltage | 3.3 V |
| Collector Emitter Voltage (VCEO) | 1.2 kV |
| Element Configuration | Dual |
| Height | 30.5 mm |
| Length | 94.5 mm |
| Max Collector Current | 100 A |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Mount | Panel, Screw |
| Number of Pins | 7 |
| REACH SVHC | No |
| RoHS | Compliant |
| Width | 34.5 mm |
