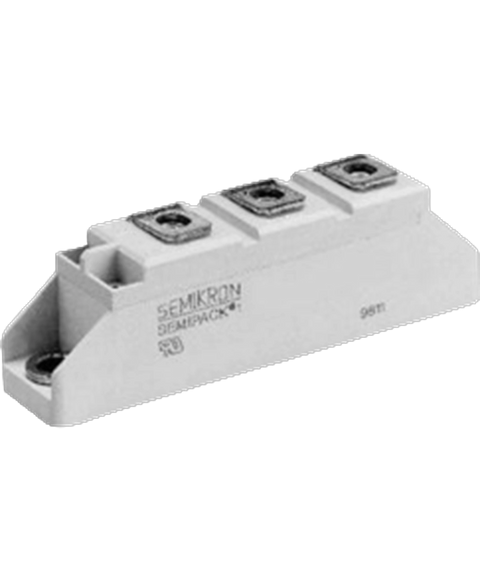

Semikron SKKD46,12
Substitute for semikron skkd 46,12, module
This Semikron SKKD46/12 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Diode modules range and is referenced internally as PartLogic SKU PL26805310980.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Element Configuration | Dual |
| Forward Current | 47 A |
| Forward Voltage | 1.95 V |
| Height | 29.9974 mm |
| Length | 92.9894 mm |
| Max Operating Temperature | 125 °C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2 kV |
| Min Operating Temperature | -40 °C |
| Mount | Screw |
| Number of Pins | 3 |
| Packaging | Cut Tape |
| Peak Non-Repetitive Surge Current | 700 A |
| REACH SVHC | No |
| RoHS | Compliant |
| Width | 19.9898 mm |
