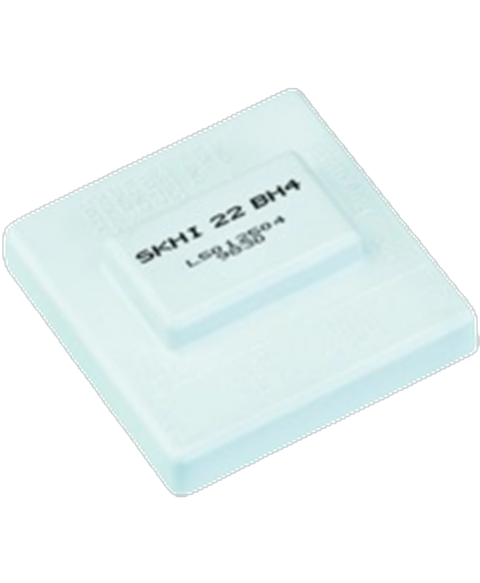

Semikron SKHI22AR
Hybrid IGBT,MOSFET driver module, half-bridge, 8A peak.
This Semikron SKHI22AR is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Igbt drivers range and is referenced internally as PartLogic SKU PL26805606975.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Collector Emitter Voltage (VCEO) | 1.2 kV |
| Frequency | 100 kHz |
| Height | 16 mm |
| Length | 55 mm |
| Max Operating Temperature | 85 °C |
| Max Output Current | 8 A |
| Max Supply Voltage | 15.6 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 14.4 V |
| Mount | Surface Mount, Through Hole |
| Number of Channels | 2 |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Number of Pins | 34 |
| Output Current | 8 A |
| REACH SVHC | No |
| Resistance | 3 Ω |
| RoHS | Compliant |
| Width | 55 mm |
