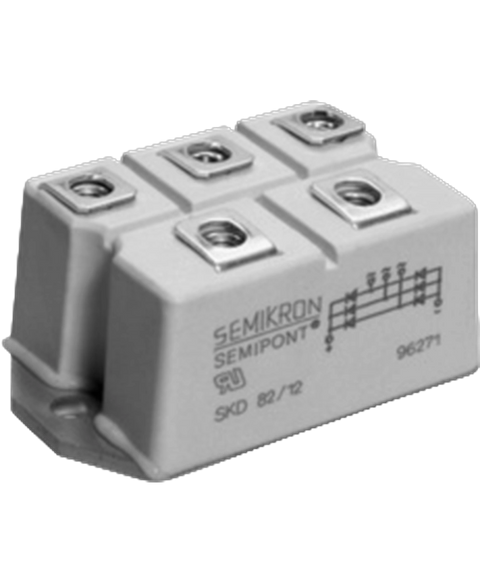

Semikron SKD82,16
Semikron SKD 82,16 Bridge Rectifier Module, 3-Phase, 150A, 1600V
This Semikron SKD82/16 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Diode modules range and is referenced internally as PartLogic SKU PL26805680024.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Current Rating | 80 A |
| Forward Current | 80 A |
| Forward Voltage | 1.6 V |
| Height | 29.9974 mm |
| Length | 71.9836 mm |
| Max Forward Surge Current (Ifsm) | 750 A |
| Max Operating Temperature | 150 °C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.6 kV |
| Min Operating Temperature | -40 °C |
| Mount | Chassis Mount, Screw |
| Number of Elements | 1 |
| Number of Pins | 5 |
| Peak Non-Repetitive Surge Current | 750 A |
| Peak Reverse Current | 500 nA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Width | 42 mm |
