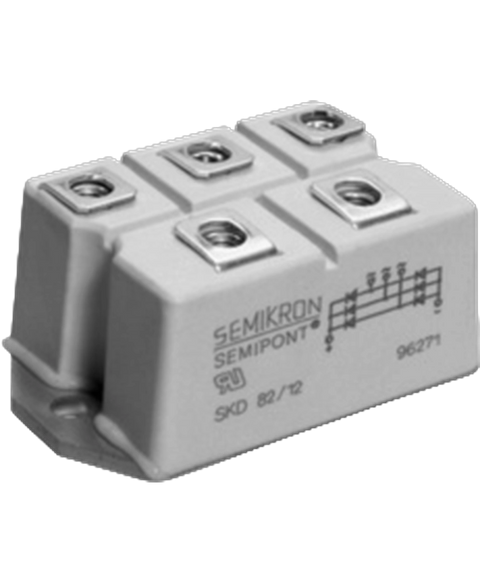

Semikron SKD82,08
Substitute for semikron skd 82,08, module
This Semikron SKD82/08 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Diode modules range and is referenced internally as PartLogic SKU PL26805596978.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | G |
| Forward Current | 80 A |
| Forward Voltage | 1.6 V |
| Height | 29.9974 mm |
| Length | 71.9836 mm |
| Max Forward Surge Current (Ifsm) | 750 A |
| Max Operating Temperature | 150 °C |
| Max Output Current | 80 A |
| Max Repetitive Reverse Voltage (Vrrm) | 800 V |
| Min Operating Temperature | -40 °C |
| Mount | Chassis Mount, Panel, Screw |
| Number of Elements | 1 |
| Number of Pins | 5 |
| Peak Non-Repetitive Surge Current | 750 A |
| REACH SVHC | No |
| RoHS | Compliant |
| Width | 65 mm |
