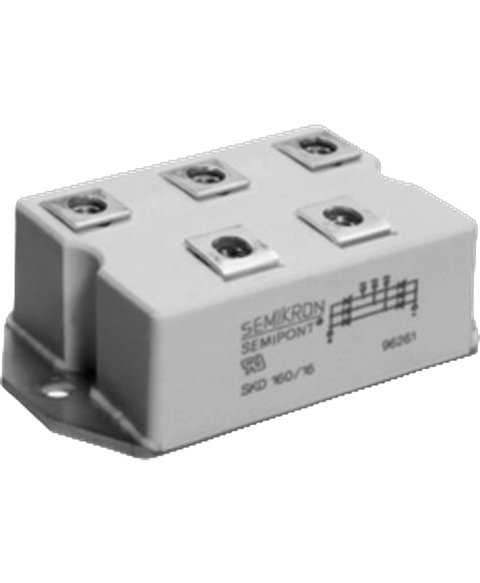

Semikron SKD210,16
Semikron SKD 210,16 bridge rectifier, 1600V, 207A, three-phase.
This Semikron SKD210/16 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Diode modules range and is referenced internally as PartLogic SKU PL26805312124.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Forward Current | 207 A |
| Forward Voltage | 1.65 V |
| Height | 29.9974 mm |
| Isolation Voltage | 3.6 kV |
| Length | 71.9836 mm |
| Max Operating Temperature | 150 °C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.6 kV |
| Min Operating Temperature | -40 °C |
| Mount | Chassis Mount, Screw |
| Number of Elements | 1 |
| Number of Pins | 5 |
| Peak Non-Repetitive Surge Current | 2 kA |
| REACH SVHC | No |
| RoHS | Compliant |
