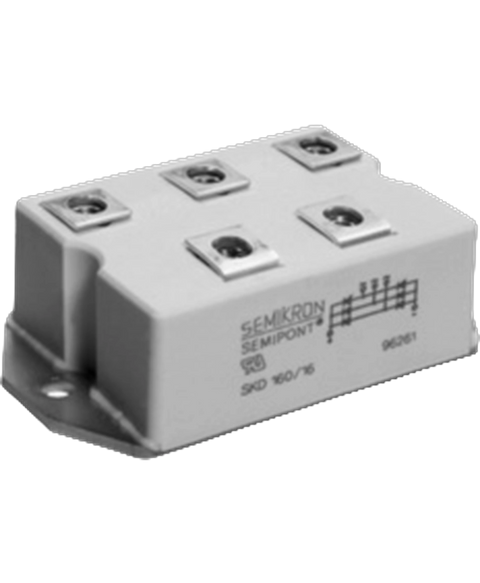

Semikron SKD160,16
Diode comb w9341 skd160-16
This Semikron SKD160/16 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Diode modules range and is referenced internally as PartLogic SKU PL26805607807.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Current Rating | 160 A |
| Forward Current | 205 A |
| Forward Voltage | 1.65 V |
| Height | 29.9974 mm |
| Length | 79.9846 mm |
| Max Operating Temperature | 150 °C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.6 kV |
| Min Operating Temperature | -40 °C |
| Mount | Chassis Mount, Screw |
| Number of Elements | 1 |
| Number of Pins | 5 |
| Peak Non-Repetitive Surge Current | 1.8 kA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Width | 54.0004 mm |
