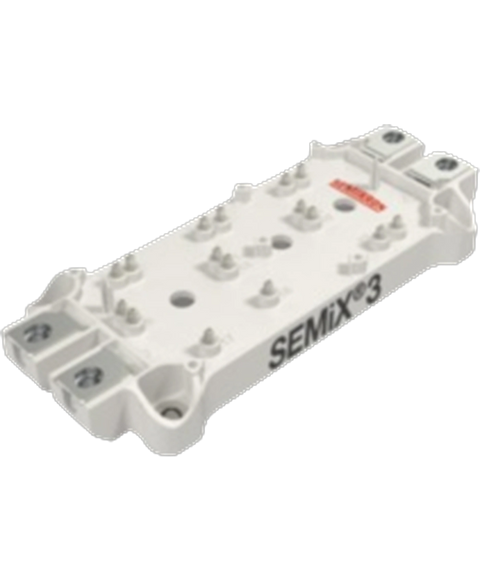

Semikron SEMIX303GB12E4S
Semix303gb12e4s + tim - igbt; part of: uc100, uc200, uc300
This Semikron SEMIX303GB12E4S is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Igbt modules range and is referenced internally as PartLogic SKU PL26805607455.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Collector Emitter Voltage (VCEO) | 1.2 kV |
| Element Configuration | Dual |
| Height | 16.9926 mm |
| Length | 149.479 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -40 °C |
| Mount | Screw |
| Number of Pins | 20 |
| Polarity | NPN |
| RoHS | Compliant |
| Width | 63.5 mm |
