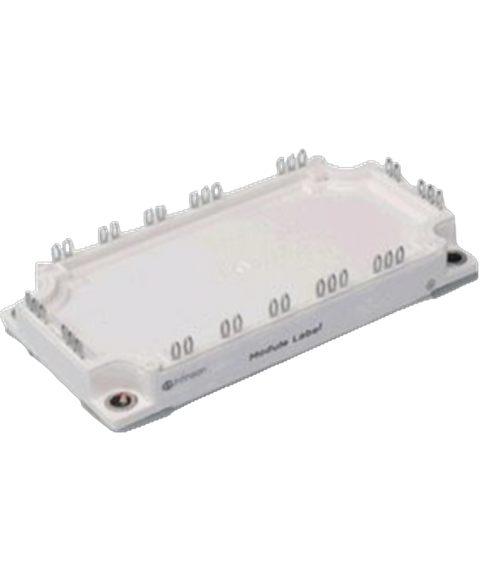

Semikron FF300R12KE4
Insulated gate bipolar transistor, 460A i(c), 1200v v(br)ces, n-channel
This Semikron FF300R12KE4 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power electronics > Igbt modules range and is referenced internally as PartLogic SKU PL26805677852.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Collector Emitter Saturation Voltage | 1.75 V |
| Collector Emitter Voltage (VCEO) | 1.2 kV |
| Continuous Collector Current | 460 A |
| Element Configuration | Dual |
| Halogen Free | Not Halogen Free |
| Height | 31.4 mm |
| Lead Free | Lead Free |
| Lifecycle Status | Unauthorized. Please upgrade your Nexar subscription to include 'LIFECYCLE'. |
| Max Junction Temperature (Tj) | 150 °C |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 7 |
| Package Quantity | 10 |
| Polarity | NPN |
| Power Dissipation | 1.6 kW |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080 |
| Turn-Off Delay Time | 500 ns |
| Turn-On Delay Time | 200 ns |
