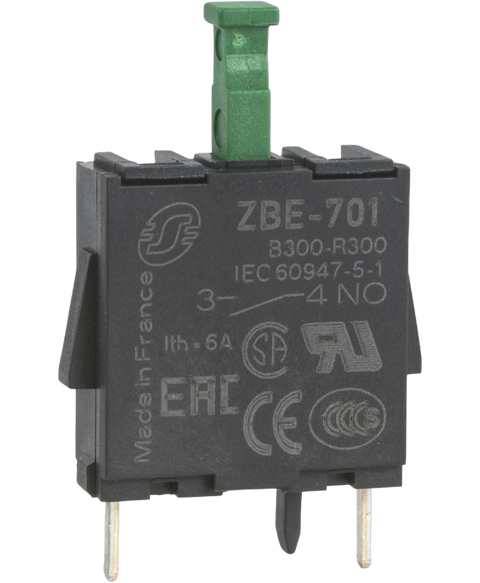

Schneider Electric ZBE-701
Single contact block, harmony xb4, 1 NO, silver alloy, pins for printed circuit board, -25 to +70 degrees c, IP20
This Schneider Electric ZBE-701 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights > Accessories > Contact blocks range and is referenced internally as PartLogic SKU PL26805539035.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XB4 | Harmony XB5 |
| Product or component type | Contact block |
| Device short name | ZBE |
| Sale per indivisible quantity | 10 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Contact operation | Slow-break |
| Contact block type | Single |
| Contacts usage | Standard contacts |
| Connections - terminals | Pins for printed circuit board |
| Net weight | 0.011 kg |
| Contacts type and composition | 1 NO |
| Positive opening | Without |
| Operating travel | 2.6 mm (NO changing electrical state) | 4.3 mm (total travel) |
| Operating force | 2.3 N NO changing electrical state |
| Mechanical durability | 5000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 4 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 6 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1 | 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1 | 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1 | 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1 |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Standards | IEC 60947-5-1 | IEC 60947-1 | UL 508 | IEC 60947-5-4 | JIS C8201-5-1 | CSA C22.2 No 14 | JIS C8201-1 |
| Product certifications | BV | UL | CSA | DNV | LROS (Lloyds register of shipping) |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.500 cm |
| Package 1 Width | 2.000 cm |
| Package 1 Length | 3.000 cm |
| Package 1 Weight | 1.700 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 2.500 cm |
| Package 2 Width | 3.500 cm |
| Package 2 Length | 6.500 cm |
| Package 2 Weight | 22.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 400 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 1.085 kg |
