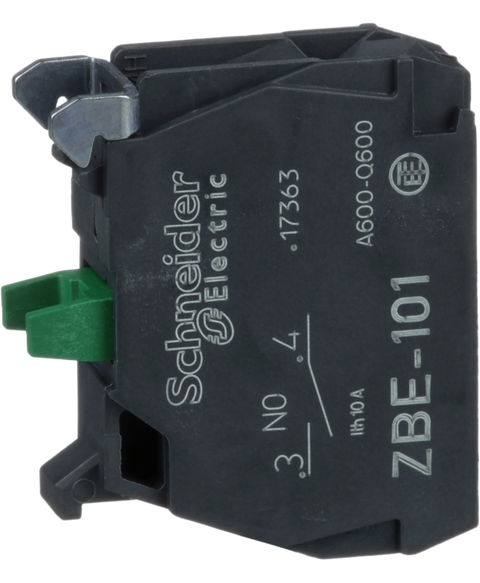

Schneider Electric ZBE-101
Contact block, harmony xb4 , xb5, for 22mm push button, single contact, 1 NO, silver alloy contacts, screw clamp terminal, 10A thermal current, 6A 120VAC operational current, 600VAC, (price each) zbe101
This Schneider Electric ZBE-101 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights > Accessories > Contact blocks range and is referenced internally as PartLogic SKU PL26801394607.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$21.29
(inc. GST)
In Stock
| Range of product | Harmony XB5 | Harmony XB4 |
| Product or component type | Contact block |
| Device short name | ZBE |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Contact operation | Slow-break |
| Contact block type | Single |
| Contacts usage | Standard contacts |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 | Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Net weight | 0.011 kg |
| Contacts type and composition | 1 NO |
| Positive opening | Without |
| Operating travel | 2.6 mm (NO changing electrical state) | 4.3 mm (total travel) |
| Operating force | 2.3 N NO changing electrical state |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with pozidriv No 1 screwdriver | Slotted compatible with flat Ø 4 mm screwdriver | Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 | 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 | 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 | 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 | 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 | 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Mounting of block | Front mounting |
| Electrical composition code | C1 (quantity <= 9) | C2 (quantity <= 7) | C3 (quantity <= 6) | C4 (quantity <= 4) | C5 (quantity <= 5) | C6 (quantity <= 3) | C7 (quantity <= 4) | C8 (quantity <= 2) | C9 (quantity <= 3) | C12 (quantity <= 6) | M1 (quantity <= 6) | M2 (quantity <= 4) | M3 (quantity <= 4) | M5 (quantity <= 2) | M6 (quantity <= 2) | M7 (quantity <= 6) | M8 (quantity <= 4) | M9 (quantity <= 2) | SF1 (quantity <= 3) | SF2 (quantity <= 2) | MF1 (quantity <= 2) | MF2 (quantity <= 2) | C10 (quantity <= 2) | M4 (quantity <= 2) | C13 (quantity <= 1) |
| Device presentation | Basic element |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Standards | CSA C22.2 No 14 | IEC 60947-5-1 | UL 508 | IEC 60947-1 | JIS C8201-5-1 | IEC 60947-5-4 | JIS C8201-1 |
| Product certifications | CCC | UL | DNV | GOST | LROS (Lloyds register of shipping) | BV | CSA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.000 cm |
| Package 1 Width | 2.500 cm |
| Package 1 Length | 3.000 cm |
| Package 1 Weight | 9.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 4.500 cm |
| Package 2 Width | 5.500 cm |
| Package 2 Length | 5.500 cm |
| Package 2 Weight | 52.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 8.691 kg |
