Schneider Electric ZB6-E1B

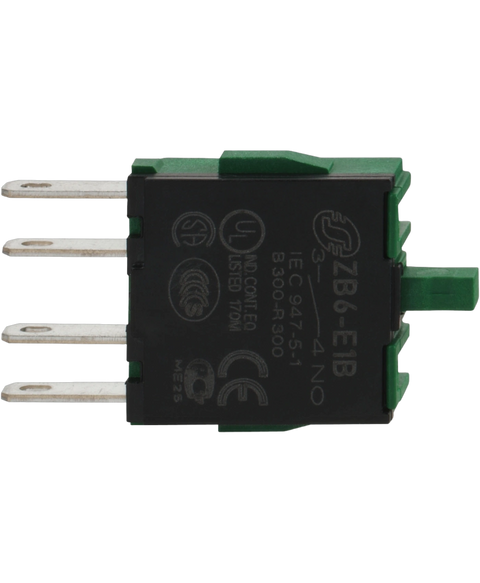

Contact block, harmony xb6-series, single contact, for head 16mm, silver alloy, faston connector, 1no
This Schneider Electric ZB6-E1B is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26805563253.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XB6 |
| Product or component type | Contact block |
| Device short name | ZB6 |
| Sale per indivisible quantity | 10 |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Contact block type | Single |
| Connections - terminals | Faston connector |
| Contacts material | Silver alloy (Ag/Ni) |
| Terminals description ISO n°1 | (3-4)NO |
| Net weight | 0.004 kg |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 2 mm (NO changing electrical state) | 3.5 mm (total travel) |
| Operating force | 1.6 N NO changing electrical state |
| Mechanical durability | 5000000 cycles |
| Short-circuit protection | 6 A cartridge fuse type gG |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 120 V, AC-15, B300 | 1.5 A at 240 V, AC-15, B300 | 0.1 A at 250 V, DC-13, R300 | 0.22 A at 125 V, DC-13, R300 |
| Electrical durability | 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4 |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | JIS C 4520 | IEC 60947-5-1 | CSA C22.2 No 14 | JIS C 852 | IEC 60947-1 | IEC 60947-5-4 | UL 508 |
| Product certifications | UL | CCC | CSA | GOST |
| Vibration resistance | +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6 | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.2 cm |
| Package 1 Width | 6.7 cm |
| Package 1 Length | 3.2 cm |
| Package 1 Weight | 2.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 2.2 cm |
| Package 2 Width | 3.2 cm |
| Package 2 Length | 6.7 cm |
| Package 2 Weight | 28.0 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 400 |
| Package 3 Height | 15.0 cm |
| Package 3 Width | 15.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 1.296 kg |
