Schneider Electric ZB5AS844

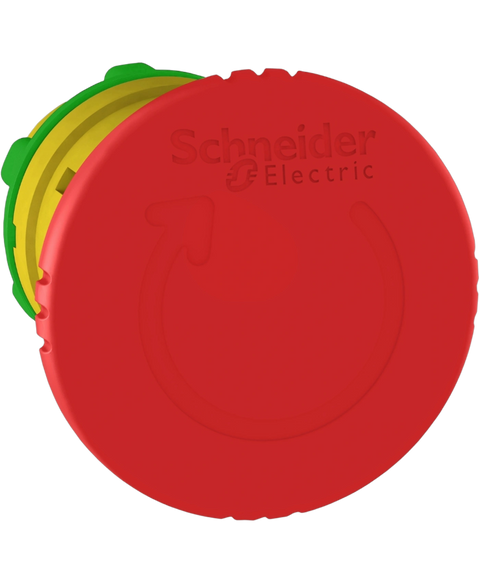

Pushbutton, emergency stop head, maintained push, trigger action, turn to release, 40mm red mushroom, 22mm mounting hole, double-insulated plastic, IP66,67,69,69k, nema 13 , nema 4x
This Schneider Electric ZB5AS844 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26801446747.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XB5 |
| Product or component type | Head for emergency stop push-button |
| Product destination | Emergency stop push-button |
| Device short name | ZB5 |
| Bezel material | Dark grey plastic |
| Head type | Standard |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | trigger action and mechanical latching |
| Reset | Turn to release |
| Operator profile | Red mushroom Ø 40 mm, unmarked |
| Device presentation | Basic element |
| CAD overall width | 40 mm |
| CAD overall height | 40 mm |
| CAD overall depth | 57 mm |
| Net weight | 0.046 kg |
| Mechanical durability | 300000 cycles |
| Station name | XALD 1 cut-out | XALK 1 cut-out |
| Electrical composition code | C7 for <4 contacts using single blocks in front mounting | C8 for <4 contacts using single and double blocks in front mounting | C11 for <3 contacts using single blocks in front mounting | C15 for <1 contacts using single blocks in front mounting | SF1 for <3 contacts using single blocks in front mounting | SR1 for <3 contacts using single blocks in rear mounting | C10 for <4 contacts using single and double blocks in front mounting |
| Compatibility code | ZB5 |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 | IP67 | IP69 | IP69K |
| NEMA degree of protection | NEMA 13 | NEMA 4X |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | UL 508 | ISO 13850 | IEC 60364-5-53 | IEC 60204-1 | GB 14048.5 | JIS C8201-5-1 | IEC 60947-5-4 | CSA C22.2 No 14 | IEC 60947-5-5 | IEC 60947-1 | IEC 60947-5-1 | JIS C8201-1 |
| Product certifications | CSA | DNV | BV | LROS (Lloyds register of shipping) | UL listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.400 cm |
| Package 1 Width | 4.400 cm |
| Package 1 Length | 8.800 cm |
| Package 1 Weight | 41.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.544 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 47.804 kg |
