Schneider Electric ZB5AS55

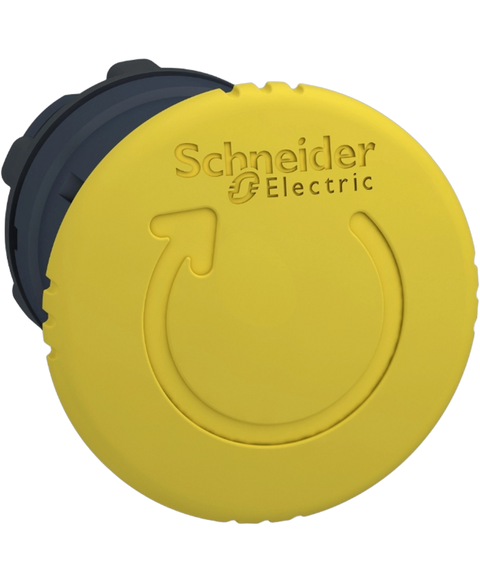

Mushroom push button head 40mm, harmony xb5, plastic, yellow, 22mm, latching turn release, non illuminated
This Schneider Electric ZB5AS55 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26933593981.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XB5 |
| Product or component type | Head for non-illuminated push-button |
| Device short name | ZB5 |
| Bezel material | Dark grey plastic |
| Head type | Standard |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | latching |
| Reset | Turn to release |
| Operator profile | Yellow mushroom Ø 40 mm, unmarked |
| Device presentation | Basic element |
| CAD overall width | 40 mm |
| CAD overall height | 40 mm |
| CAD overall depth | 57 mm |
| Net weight | 0.044 kg |
| Mechanical durability | 500000 cycles |
| Station name | XALD 1 cut-out | XALK 1 cut-out |
| Electrical composition code | C11 for <3 contacts using single blocks in front mounting | C15 for <1 contacts using single blocks in front mounting | SF1 for <3 contacts using single blocks in front mounting | SR1 for <3 contacts using single blocks in rear mounting | C7 for <4 contacts using single blocks in front mounting | C8 for <4 contacts using single and double blocks in front mounting | C10 for <4 contacts using single and double blocks in front mounting |
| Compatibility code | ZB5 |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 | IP67 | IP69 | IP69K |
| NEMA degree of protection | NEMA 13 | NEMA 4X |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | UL 508 | JIS C8201-5-1 | IEC 60947-1 | IEC 60947-5-1 | CSA C22.2 No 14 | IEC 60947-5-4 | JIS C8201-1 |
| Product certifications | CSA | DNV | BV | LROS (Lloyds register of shipping) | UL listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.800 cm |
| Package 1 Width | 5.300 cm |
| Package 1 Length | 4.500 cm |
| Package 1 Weight | 42.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.650 kg |
