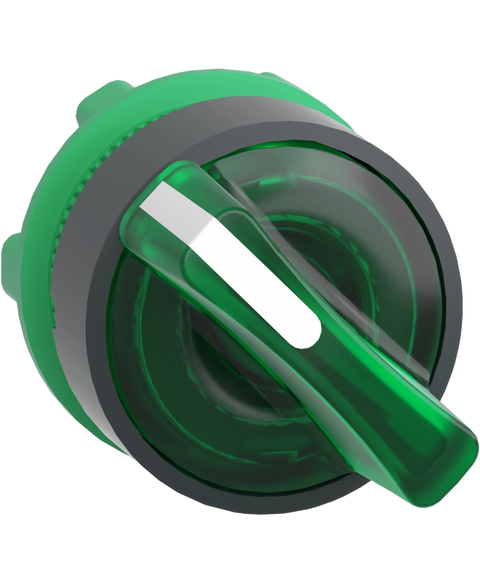

Schneider Electric ZB5AK1233
Sel sw 2pos illgrn led; for use with:schneider xalf & xb5 series selector switches; ip , nema rating:ip69k; product range:-; svhc:NO svhc (15-jan-2018); approvals , standards:csa c22-2 NO. 14, en 60947, IEC 60947, ul 508; mounting rohs compliant: yes
This Schneider Electric ZB5AK1233 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26911160931.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XB5 | Harmony XALF |
| Product or component type | Head for illuminated selector switch |
| Product compatibility | Universal LED |
| Device short name | ZB5 |
| Bezel material | Dark grey plastic |
| Mounting diameter | 22 mm |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | stay put |
| Operator profile | Green standard handle |
| Operator position information | 2 positions 90° |
| CAD overall width | 29 mm |
| CAD overall height | 29 mm |
| CAD overall depth | 43 mm |
| Net weight | 0.016 kg |
| Mechanical durability | 1000000 cycles |
| Station name | XALD 1...5 cut-outs | XALK 2...5 cut-outs |
| Electrical composition code | M3 for <4 contacts using single blocks in front mounting with integral LED | M6 for <2 contacts using single blocks in front mounting with integral LED and transformer | M10 for <2 contacts using single blocks in front mounting with integral LED | MF1 for <2 contacts using single blocks in front mounting with integral LED | MR1 for <2 contacts using single blocks in rear mounting with integral LED | M4 for <4 contacts using single and double blocks in front mounting with integral LED |
| Device presentation | Basic element |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 | IP67 | IP69 | IP69K |
| NEMA degree of protection | NEMA 13 | NEMA 4X |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IK degree of protection | IK04 conforming to IEC 50102 |
| Standards | UL 508 | CSA C22.2 No 14 | JIS C8201-5-1 | EN/IEC 60947-5-5 | EN/IEC 60947-5-1 | EN/IEC 60947-5-4 | EN/IEC 60947-1 | JIS C8201-1 |
| Product certifications | CSA | DNV | BV | LROS (Lloyds register of shipping) | UL listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.700 cm |
| Package 1 Width | 5.200 cm |
| Package 1 Length | 3.300 cm |
| Package 1 Weight | 23.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.249 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 52.604 kg |
