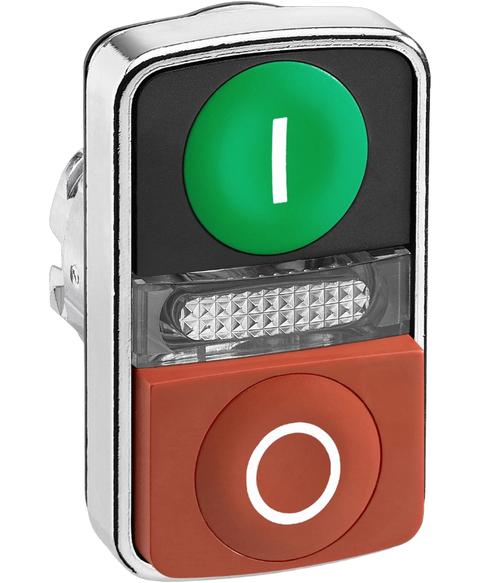

Schneider Electric ZB4-BW7L3741
Actuator head, xb4 pushbutton switch; for use with:xb4 series illuminated double-headed pushbutton switches; ip , nema rating:-; product range:zb4 series; mounting hole dia:22mm rohs compliant: yes
This Schneider Electric ZB4-BW7L3741 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26929824266.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XB4 |
| Product or component type | Head for illuminated double-headed push-button |
| Product compatibility | Integral LED |
| Device short name | ZB4 |
| Bezel material | Chromium plated metal |
| Head type | Standard |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular |
| Type of operator | spring return |
| Operator profile | 1 flush - 1 projecting push-buttons - 1 central pilot light |
| Operators description | Green ''I'' - red ''O'' |
| CAD overall width | 30 mm |
| CAD overall height | 50 mm |
| CAD overall depth | 30 mm |
| Net weight | 0.056 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Colour of marking | White marking when green, red or black caps | Black marking when white caps |
| Mechanical durability | 1000000 cycles |
| Electrical composition code | M1 for <6 contacts using single blocks in front mounting with integral LED | M2 for <6 contacts using single and double blocks in front mounting with integral LED | M6 for <2 contacts using single blocks in front mounting with integral LED and transformer | M10 for <2 contacts using single blocks in front mounting with integral LED |
| Device presentation | Basic sub-assemblies |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 61140 |
| IP degree of protection | IP66 conforming to IEC 60529 | IP69K | IP69 conforming to IEC 60529 |
| NEMA degree of protection | NEMA 13 | NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-5 | UL 508 | CSA C22.2 No 14 | IEC 60947-5-4 | JIS C8201-5-1 | IEC 60947-5-1 | IEC 60947-1 | JIS C8201-1 |
| Product certifications | CSA | LROS (Lloyds register of shipping) | BV | UL listed | DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 3.300 cm |
| Package 1 Length | 5.300 cm |
| Package 1 Weight | 58.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 12.006 kg |
