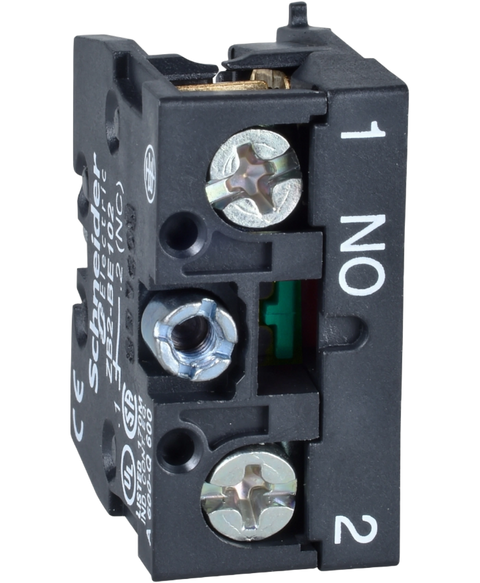

Schneider Electric ZB2BE101
Contact block, harmony, for 22mm push button, 1 NO, screw clamp terminals, 10A, 600 v, (aka: zb2-be101)
This Schneider Electric ZB2BE101 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights range and is referenced internally as PartLogic SKU PL26907381092.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XAC |
| Product or component type | Contact block |
| Component name | ZB2 |
| Electrical circuit type | Control circuit |
| Contact block application | Single speed |
| Contact block type | Single |
| Type of operator | Spring return |
| Product compatibility | XB4 | XAPS2 | XACA | XB5 |
| Contacts type and composition | 1 NO |
| Mounting of block | Front mounting |
| Contact operation | Slow-break |
| Mechanical durability | 1000000 cycles |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A | A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A | Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A | Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 13…15 N |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG (gl) |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 120 V, load factor = 0.5 conforming to IEC 60947-5-1 | 48 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 48 V, load factor = 0.5 conforming to IEC 60947-5-1 | 65 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 24 V, load factor = 0.5 conforming to IEC 60947-5-1 |
| Terminals description ISO n°1 | (13-14)NO |
| Net weight | 0.02 kg |
| Connections - terminals | Screw clamps terminals, 1 x 2.5 mm² with or without cable end | Screw clamps terminals, 2 x 1.5 mm² with or without cable end |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Standards | IEC 60947-5-1 | UL 508 | IEC 60204-32 | CSA C22.2 No 14 |
