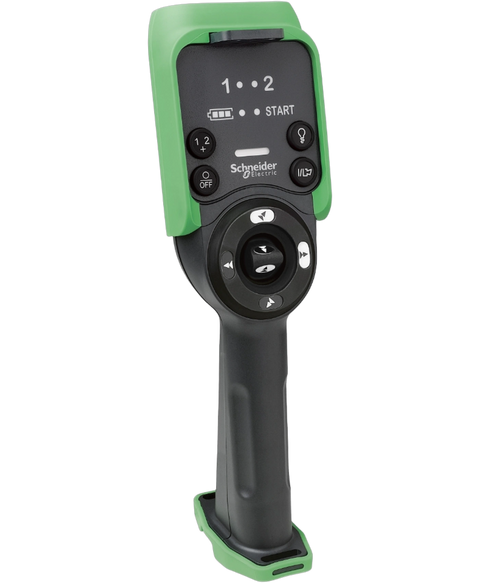

Schneider Electric ZART8L
Remote, 6 motion, 2 aux pushbuttons, with led
This Schneider Electric ZART8L is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pendant stations > Wireless range and is referenced internally as PartLogic SKU PL26895552133.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony eXLhoist |
| Product or component type | Hand-held remote control |
| Device short name | ZART |
| Control button type | 6 configurable motion push-button | 2 configurable auxiliary push-button |
| Material | Enclosure: PC (polycarbonate) | Enclosure: PBT (polybutylene terephthalate) | Cover: PP (polypropylene) | Protective cover: EPDM rubber |
| Function available | Accelerometer function |
| Display type | 4 LEDs |
| operating distance | 50 m |
| Mechanical robustness | Free fall resistance 4.5 m conforming to IEC 60068-2-27 |
| Communication network type | Wireless: bluetooth low energy |
| Transmission frequency | 2.4 GHz |
| Maximum sensing distance | 100 m in free field |
| Response time | < 300 ms at full duplex |
| Charging time | 900 s |
| Autonomy | 30 h |
| Mechanical durability | 5000000 cycles |
| service life | 5 year(s) |
| Width | 100 mm |
| Height | 340 mm |
| Depth | 90 mm |
| Net weight | 0.65 kg |
| Radio agreement | SRRC | ARIB | ANATEL | ICASA | FCC | RSS |
| IP degree of protection | IP65 |
| NEMA degree of protection | NEMA 4 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -20…45 °C |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 0.075 mm conforming to IEC 60068-2-6 (f = 10…55 Hz) |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Relative humidity | 0…95 % at -20…60 °C operating |
| Product certifications | KC | C-Tick | EAC | CSA | UL | CE | JIS |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.700 cm |
| Package 1 Width | 10.200 cm |
| Package 1 Length | 33.600 cm |
| Package 1 Weight | 734.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.450 kg |
