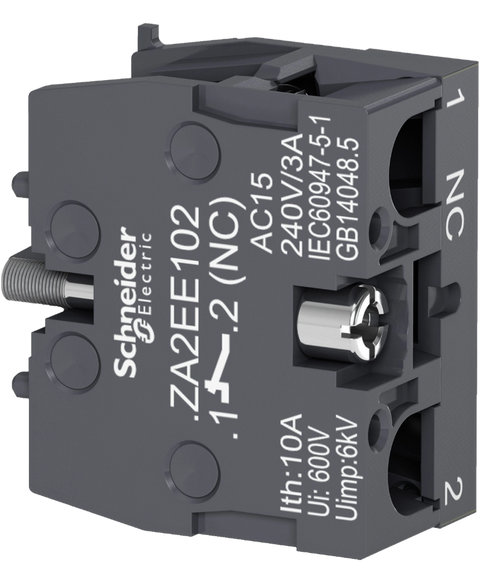

Schneider Electric ZA2EE102
Contact block, easy harmony xa2, single contact, 2A, 230VAC, 110VDC, 1 spst-NC, -25 to +55 degrees c, IP20
This Schneider Electric ZA2EE102 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Controls > Pushbuttons pilot lights > Emergency stop operators range and is referenced internally as PartLogic SKU PL26902128974.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Easy Harmony XA2 |
| Product or component type | Contact block |
| Device short name | ZA2E |
| Contact operation | Slow-break |
| Contact block type | Single |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | , <= 2 x 1.5 mm² conforming to IEC 60947-1 | , <= 1 x 2.5 mm² conforming to IEC 60947-1 | , >= 1 x 0.5 mm² conforming to IEC 60947-1 | Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1 |
| Tightening torque | 0.8 N.m |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 2 A at 230 V, AC-15, A600 conforming to IEC 60947-5-1 | 0.2 A at 110 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| Electrical durability | 500000 cycles, AC-15, 2 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 | 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Contacts type and composition | 1 NC |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 60947-1 | IEC 60529 | IEC 60947-5-4 | IEC 60947-5-1 |
| Product certifications | CCC | CE |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.520 cm |
| Package 1 Width | 10.160 cm |
| Package 1 Length | 10.160 cm |
| Package 1 Weight | 20.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 5.200 cm |
| Package 2 Width | 19.100 cm |
| Package 2 Length | 17.000 cm |
| Package 2 Weight | 100.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.000 kg |
