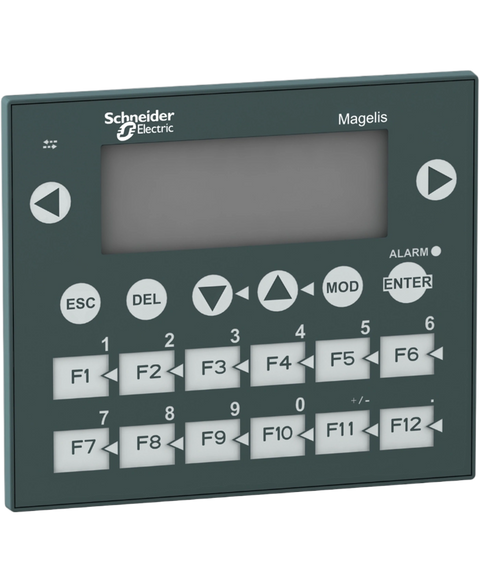

Schneider Electric XBTR411
The Schneider Electric XBTR411 is a compact HMI panel that includes a keypad and matrix screen for easy interaction. It features a pixel resolution of 122 x 32 and operates with a matrix backlit LCD. The unit is powered by a voltage range of 18 to 30 volts, consuming no more than 5 watts during operation.
This Schneider Electric XBTR411 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805616138.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Magelis XBTR |
| Display resolution | 122 x 32 pixels |
| Software type | Configuration software |
| Software designation | Vijeo Designer Lite |
| Operating system | Windows |
| Display type | Matrix backlit LCD |
| Character font | Latin | Chinese (simplified Chinese) | Greek | Cyrillic | Katakana |
| Supply voltage limits | 18…30 V |
| Residual ripple | <= 1200 MV |
| Power consumption in W | 5 W |
| Number of key | 20 |
| Number of fixed keys | 8 |
| Number of customisable keys | 12 |
| Local signalling | 16 LEDs |
| Number of pages | 200 application pages | 256 alarm pages |
| Memory type | Flash |
| Memory capacity | 512 KB |
| Integrated connection type | Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485)multidrop topology | Power supply: removable screw terminal block | Printer port: female mini DIN |
| Realtime clock | Access to the PLC real-time clock |
| Range compatibility | Modicon Premium | Modicon M340 | Twido | Modicon TSX Micro | Modicon Momentum | Modicon Quantum |
| Product mounting | Flush mounting |
| Fixing mode | By 4 spring clips |
| Display material | Polyester |
| Front material | PPT |
| Keypad material | Polyester |
| Marking | CE |
| Height | 118 mm |
| Width | 137 mm |
| Depth | 39 mm |
| Cut-out dimensions | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm |
| Net weight | 0.55 kg |
| Product or component type | Small panel with keypad |
| Display colour | Green | Red | Orange |
| display capacity | 4 lines of 20 characters maximum | 1 line of 5 characters minimum |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Downloadable protocols | Modbus | Third party protocols | Uni-TE |
| Standards | IEC 61131-2 | IEC 60068-2-6 | CSA C22.2 No 14 | IEC 60068-2-27 | UL 508 |
| Product certifications | CSA Class 1 Division 2 | UL 1604 | ATEX zone 2/22 | UL Class 1 Division 2 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 0…85 % without condensation |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 | IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (outdoor use) |
| Shock resistance | 15 gn for 11 ms |
| Vibration resistance | +/- 3.5 mm (f= 2…8.45 Hz) | 1 gn (f= 8.45…150 Hz) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.7 cm |
| Package 1 Width | 17.3 cm |
| Package 1 Length | 25.5 cm |
| Package 1 Weight | 598.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 6.605 kg |
