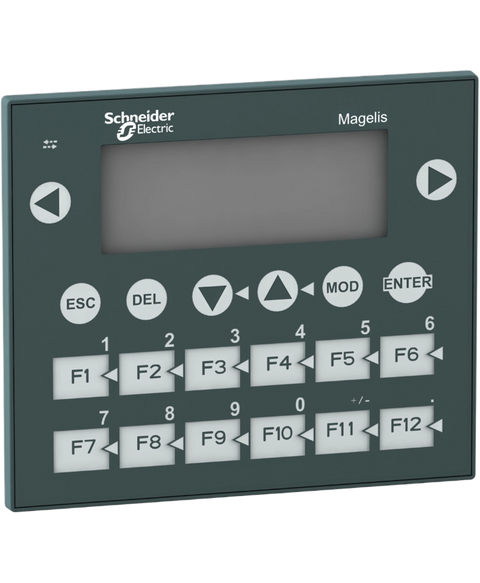

Schneider Electric XBTR410
The XBTR410 is a small panel terminal from Schneider Electric's MAGELiS series, equipped with a keypad for user interaction. It features a matrix backlit LCD display with a resolution of 122 x 32 pixels in green color, making it suitable for various display requirements.
This Schneider Electric XBTR410 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26801382625.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Magelis XBTR |
| Display resolution | 122 x 32 pixels |
| Software type | Configuration software |
| Software designation | Vijeo Designer Lite |
| Operating system | Windows |
| Display type | Matrix backlit LCD |
| Character font | Latin | Katakana | Greek | Cyrillic | Chinese (simplified Chinese) |
| Supply voltage limits | 18…30 V |
| Residual ripple | <= 1200 MV |
| Power consumption in W | 5 W |
| Number of key | 20 |
| Number of fixed keys | 8 |
| Number of customisable keys | 12 |
| Number of pages | 256 alarm pages | 200 application pages |
| Memory type | Flash |
| Memory capacity | 512 KB |
| Integrated connection type | Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485)multidrop topology | Power supply: removable screw terminal block |
| Realtime clock | Access to the PLC real-time clock |
| Range compatibility | Twido | Modicon TSX Micro | Modicon Quantum | Modicon Momentum | Modicon Premium | Modicon M340 |
| Product mounting | Flush mounting |
| Fixing mode | By 4 spring clips |
| Display material | Polyester |
| Front material | PPT |
| Keypad material | Polyester |
| Marking | CE |
| Height | 118 mm |
| Width | 137 mm |
| Depth | 39 mm |
| Cut-out dimensions | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm |
| Net weight | 0.55 kg |
| Product or component type | Small panel with keypad |
| Display colour | Green |
| display capacity | 1 line of 5 characters minimum | 4 lines of 20 characters maximum |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Downloadable protocols | Third party protocols | Modbus | Uni-TE |
| Standards | UL 508 | IEC 60068-2-27 | IEC 60068-2-6 | IEC 61131-2 | CSA C22.2 No 14 |
| Product certifications | CSA Class 1 Division 2 | ATEX zone 2/22 | UL Class 1 Division 2 | UL 1604 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 0…85 % without condensation |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 | IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (outdoor use) |
| Shock resistance | 15 gn for 11 ms |
| Vibration resistance | +/- 3.5 mm (f= 2…8.45 Hz) | 1 gn (f= 8.45…150 Hz) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.8 cm |
| Package 1 Width | 17.5 cm |
| Package 1 Length | 25.0 cm |
| Package 1 Weight | 603.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 6.686 kg |
