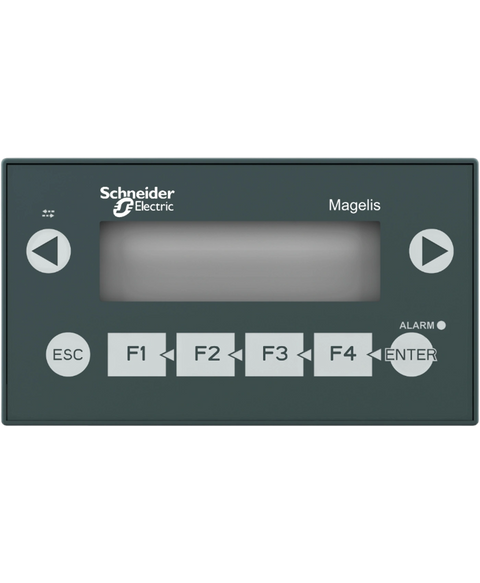

Schneider Electric XBTN401
The Schneider Electric XBTN401 is a compact panel featuring a keypad. This model is equipped with an extra bright matrix backlit LCD that displays colors in red, green, and orange, alongside a resolution of 122 x 32 pixels.
This Schneider Electric XBTN401 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805530661.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Magelis XBTN |
| Product or component type | Small panel with keypad |
| Display resolution | 122 x 32 pixels |
| Software type | Configuration software |
| Software designation | Vijeo Designer Lite |
| Operating system | Magelis |
| Display type | Extra-bright matrix backlit LCD |
| Display colour | Red | Green | Orange |
| Character font | ASCII | Katakana | Chinese (simplified Chinese) | Greek | Cyrillic |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 18…30 V |
| Residual ripple | 1200 mV |
| Power consumption in W | 5 W |
| Number of key | 8 |
| Number of fixed keys | 4 |
| Number of customisable keys | 4 |
| Local signalling | 6 LEDs |
| Number of pages | 256 alarm pages | 200 application pages |
| Memory type | Flash |
| Memory capacity | 512 KB |
| Integrated connection type | Power supply: removable screw terminal block | Printer port: female mini DIN | Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485)multidrop topology |
| Realtime clock | Access to the PLC real-time clock |
| Product mounting | Flush mounting |
| fixing mode | By 2 spring clips |
| Display material | Polyester |
| Front material | PPT |
| Keypad material | Polyester |
| Marking | CE |
| Width | 132 mm |
| Height | 74 mm |
| Depth | 43 mm |
| Cut-out dimensions | 119.4 (+/- 0.5) x 63 (+/- 0.4) mm |
| Net weight | 0.38 kg |
| Messages display capacity | 4 lines of 20 characters maximum | 1 line of 5 characters minimum |
| Downloadable protocols | Uni-TE | Modbus | Third party protocols |
| Standards | IEC 60068-2-6 | IEC 61131-2 | CSA C22.2 No 14 | IEC 60068-2-27 | UL 508 |
| Product certifications | UL 1604 | ATEX zone 2/22 | CSA Class 1 Division 2 | UL Class 1 Division 2 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 0…85 % without condensation |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 | IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (outdoor use) |
| Shock resistance | 15 gn for 11 ms |
| Vibration resistance | +/- 3.5 mm (f = 2…8.45 Hz) | 1 gn (f = 8.45…150 Hz) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 16.2 cm |
| Package 1 Length | 23.5 cm |
| Package 1 Weight | 440.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 11 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.495 kg |
