Schneider Electric XBTGT2130

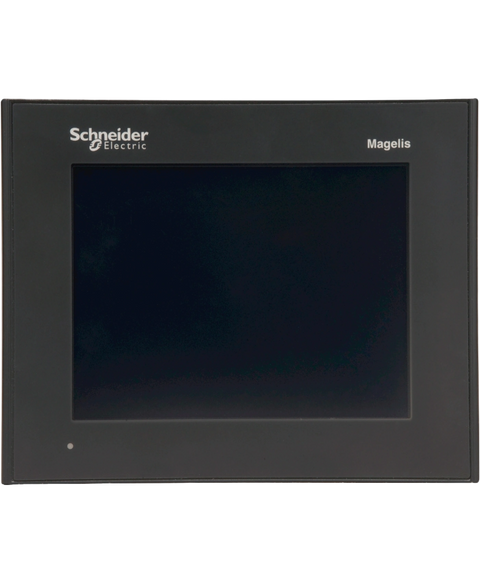

The Schneider Electric XBTGT2130 is an operator terminal featuring a graphic LCD screen for effective human-machine interaction. This terminal operates with a touchscreen interface, providing 16 levels of grey color for display, enhancing visibility and operability.
This Schneider Electric XBTGT2130 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805548522.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XBTGT |
| Product or component type | Advanced touchscreen panel |
| Display type | Backlit monochrome STN LCD |
| Display colour | Black and white | 16 levels of grey |
| Display resolution | 320 x 240 pixels QVGA |
| Display size | 5.7 inch |
| Software type | Configuration software |
| Software designation | Vijeo Designer |
| Operating system | Harmony |
| Processor name | CPU RISC |
| Processor frequency | 133 MHz |
| Memory description | 512 KB SRAM back up of data with lithium battery back-up | 16 MB flash EPROM application memory |
| Integrated connection type | male SUB-D 9 connector COM1 serial link with RS232C/RS422/RS485 interface at <= 115.2 kbits/s | removable screw terminal block connector power supply | RJ45 connector Ethernet TCP/IP | USB type A master port (V1.1), compatible with Modicon M340 terminal port communication | RJ45 connector COM2 serial link with RS485 interface at <= 187.5 kbit/s |
| Resistance to electrostatic discharge | 6 kV conforming to IEC 61000-4-2 level 3 |
| Cut-out dimensions | 156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Analogue |
| Backlight lifespan | 58000 hours |
| Brightness | 8 levels via touch panel |
| Contrast | 8 levels via touch panel |
| Character font | ASCII (European characters) | Japanese (ANK, Kanji) | Korean | Chinese (simplified Chinese) | Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| Power consumption in W | 26 W |
| Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| Number of pages | Limited by internal memory capacity |
| Downloadable protocols | Telemecanique Modicon FIPWAY | Telemecanique Modicon Modbus Plus | Telemecanique Modicon Modbus TCP/IP | Telemecanique Modicon Modbus | Mitsubishi Melsec third party protocols | Omron Sysmac third party protocols | Rockwell Automation Allen-Bradley third party protocols | Siemens Simatic third party protocols | Telemecanique Modicon Uni-TE |
| Realtime clock | Built-in |
| Data storage equipment | 1 Compact Flash card >= 1 GB |
| Use of slot | For 1 fieldbus communication card (Device Net, Profibus DP) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product mounting | Flush mounting |
| fixing mode | By 2 spring clips | By 4 screw clamps |
| Front material | Aluminium alloy |
| Enclosure material | PPT |
| Marking | CE |
| Width | 167.5 mm |
| Height | 135 mm |
| Depth | 59.5 mm |
| Net weight | 1 kg |
| Immunity to microbreaks | 5 ms |
| Standards | EN 61131-2 | UL 1604 | CSA C22.2 No 14 | FCC Class A | IEC 61000-6-2 | UL 508 |
| Product certifications | cULus | CSA Class 1 Division 2 T4A | UL Class 1 Division 2 T5 | C-Tick | ATEX zone 2/22 | CSA Class 1 Division 2 T5 | UL Class 1 Division 2 T4A |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 0…90 % without condensation |
| Operating altitude | < 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 | IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 1 gn conforming to IEC 60068-2-6 (f = 9…150 Hz) | 3.5 mm conforming to IEC 60068-2-6 (f = 5…9 Hz) |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.5 cm |
| Package 1 Width | 18.5 cm |
| Package 1 Length | 23.5 cm |
| Package 1 Weight | 1.312 kg |
