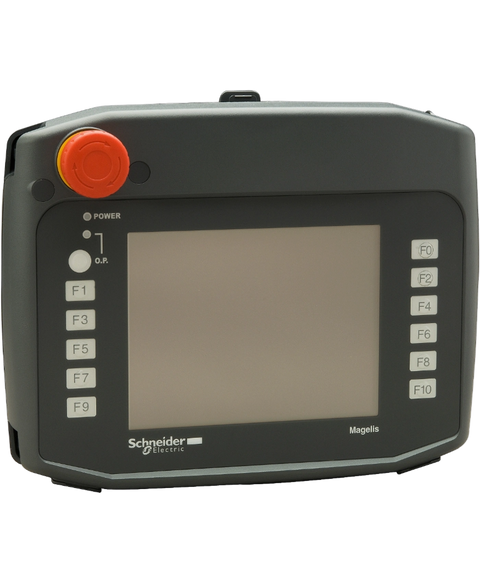

Schneider Electric XBTGH2460
The Schneider Electric XBTGH2460 is designed as an advanced handheld control panel suited for various operational tasks. Featuring a VGA resolution of 640 x 480 pixels on a 5.7-inch TFT LCD, it supports a color depth of 65,536 hues with 16 levels of brightness, allowing for clear visibility in diverse lighting conditions.
This Schneider Electric XBTGH2460 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26905685784.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony XBTGH |
| Product or component type | Advanced hand-held panel |
| Display type | Backlit colour TFT LCD |
| Display colour | 65536 colours |
| Display resolution | 640 x 480 pixels VGA |
| Display size | 5.7 inch |
| Control type | 1 emergency stop | 1 key switch | 1 enable switch |
| Contacts type and composition | 1 NC + 1 NO for key switch | 2 NO for enable switch | 2 NC + 1 NO |
| Software type | Configuration software |
| Software designation | Vijeo Designer |
| Operating system | Harmony |
| Processor name | CPU RISC |
| Processor frequency | 266 MHz |
| Memory description | 512 KB SRAM back up of data with lithium battery back-up | 32 MB flash EPROM application memory |
| Integrated connection type | 1USB type A master port (V1.1) | 24-pin Faston connector connector COM1 serial link, compatible with junction box | 24-pin Faston connector connector Ethernet TCP/IP, compatible with junction box | 24-pin Faston connector connector power supply, compatible with junction box |
| Resistance to electrostatic discharge | 6 kV conforming to IEC 61000-4-2 level 3 |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours |
| Brightness | 16 levels via touch panel |
| Character font | Taiwanese (traditional Chinese) | Korean | Chinese (simplified Chinese) | ASCII (European characters) | Japanese (ANK, Kanji) |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2…28.8 V |
| [Ue] rated operational voltage | 24 V DC for key switch | 30 V DC for emergency stop | 30 V DC for enable switch |
| Maximum [Ie] rated operational current | 1 A for emergency stop | 0.3 A for key switch | 0.7 A for control handle |
| Inrush current | 60 A |
| Power consumption in W | 16.7 W |
| Number of Operation keys | 1 with LED |
| Number of static function keys | 11 with labels |
| Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| Downloadable protocols | Schneider Electric Modicon Modbus | Schneider Electric Modicon Modbus TCP/IP | Mitsubishi Melsec third party protocols | Omron Sysmac third party protocols | Rockwell Automation Allen-Bradley third party protocols | Siemens Simatic third party protocols | Schneider Electric Modicon Uni-TE |
| Realtime clock | Built-in |
| Data storage equipment | 1 Compact Flash card >= 1 GB |
| Enclosure material | PPT |
| Marking | CE |
| Width | 224 mm |
| Height | 174 mm |
| Depth | 87.1 mm |
| Net weight | 1 kg |
| Immunity to microbreaks | 5 ms |
| Standards | UL 508 | FCC Class A | IEC 61000-6-2 | EN 61131-2 |
| Product certifications | C-Tick | cULus |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 0…90 % without condensation |
| Operating altitude | < 2000 m |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 1 gn conforming to IEC 60068-2-6 (f = 9…150 Hz) | 3.5 mm conforming to IEC 60068-2-6 (f = 5…9 Hz) |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.200 cm |
| Package 1 Width | 26.700 cm |
| Package 1 Length | 30.500 cm |
| Package 1 Weight | 1.918 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 4.477 kg |
