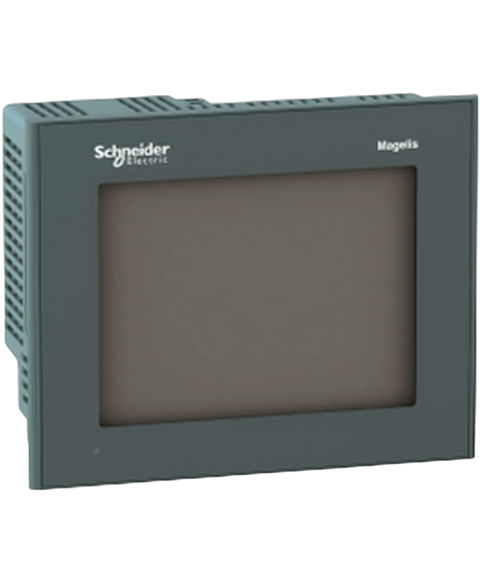

Schneider Electric XBTGC2330T
The XBTGC2330T is a versatile HMI controller panel from Schneider Electric's MAGELiS product line. Featuring a 5.7-inch LCD TFT display, this device supports a resolution of 320 x 240 pixels and provides a clear, color interface for user interaction.
This Schneider Electric XBTGC2330T is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805754766.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | MAGELiS |
| Part Number | XBTGC2330T |
| EAN | 3595864167121 |
| Weight | 4.00 lbs (1.81 kg) |
| Product Name | HMI Controller Panel |
| Color | 65K |
| Display Type | LCD TFT |
| Display Size | 5.7 in. (145 mm) |
| Backlit | Yes |
| Touchscreen | Yes |
| Keypad | No |
| Screen Resolution | 320 x 240 pixels |
| Display Adapter | QVGA |
| Operating Voltage | 24 VDC |
| Inrush Current | 30A |
| Power Consumption | 27W |
| Clock Speed | 131 MHz |
| Memory | Application memory 16 MB, Back up of data 512 KB |
| Brand | Schneider Electric |
